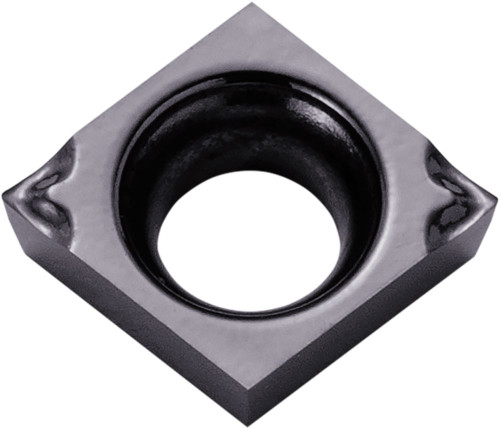

Kyocera CCGT 141105MPCF PR1225 Grade PVD Carbide, Indexable Turning Insert

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TKE01386
$42.27
Kyocera CCGT 141105MPCF PR1225 Grade PVD Carbide, 7 Degree, Diamond, Positive Rake Angle, Neutral Turning Insert for Light Interruption and Finishing in (M) Stainless Steel and (P) Carbon/Alloy Steel

Specifications

Series
ISOI
Unit of Measure
Imperial
Cutting Direction
Neutral
Material
Carbide
Coating/Finish
PVD
Primary Workpiece Material
(M) Stainless Steel
Corner Radius
0.01 Inch
Included Angle
80 degrees
Thickness
0.07 Inch
Style
CCGT
Application
Boring, External Turning, Facing, Internal Facing, Sub-Spindle
Shape
80 Degree Diamond
Insert Holding Method
Screw or Clamp
Size
141105
Old Material Number
8831782
ANSI Part Number
CCGT141105MPCFPR1225
ISO Part Number
CCGT040102MP-CF
Rake
Positive
Material Group / Grade
PR1225
Corner Radius (Metric)
0.20
Number of Cutting Edges
2
Thickness (Metric)
1.80
Chipbreaker
CF
Cutting Range
Finishing
Usage Classification
Light Interruption
Insert Included Angle
80 degrees
Inscribed Circle (Metric)
4.30
Inscribed Circle
0.17 Inch
Pack quantity
10
PDF 1
https://s3-us-west-2.amazonaws.com/catsy.739/Molded_Sharp_Edge_Chipbreaker.pdf
PDF 2
https://s3-us-west-2.amazonaws.com/catsy.739/Small_Part_Tooling_Solutions.pdf
