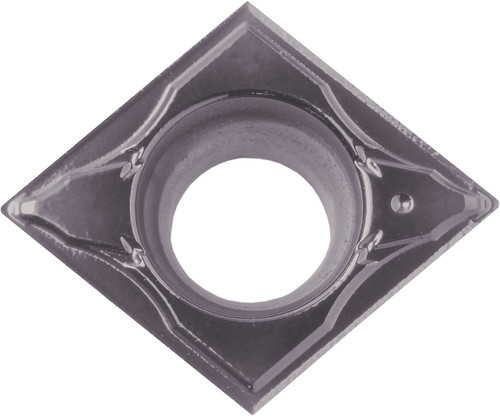

Kyocera CCGT 21502MFPGF PR1725 Grade PVD Carbide, Indexable Turning Insert

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TLM00066
$25.15
Kyocera CCGT 21502MFPGF PR1725 Grade PVD Carbide, 7 Degree, Diamond, Positive Rake Angle, Neutral Turning Insert for Light Interruption and Finishing in (P) Carbon/Alloy Steel and (P) Free-Cutting Steel, (M) Stainless Steel

Specifications

Series
ISOI
Unit of Measure
Fractional
Cutting Direction
Neutral
Material
Carbide
Coating/Finish
PVD
Primary Workpiece Material
(P) Carbon/Alloy Steel
Included Angle
80 degrees
Thickness
3/32 Inch
Style
CCGT
Application
Boring, External Turning, Facing, Internal Facing, Sub-Spindle
Shape
80 Degree Diamond
Insert Holding Method
Screw or Clamp
Size
21502
Old Material Number
8863320
ANSI Part Number
CCGT21502MFPGFPR1725
ISO Part Number
CCGT060201MFP-GF
Rake
Positive
Material Group / Grade
PR1725
Corner Radius (Metric)
0.10
Number of Cutting Edges
2
Thickness (Metric)
2.38
Chipbreaker
GF
Cutting Range
Finishing
Usage Classification
Light Interruption
Insert Included Angle
80 degrees
Inscribed Circle (Metric)
6.35
Inscribed Circle
1/4 Inch
Pack quantity
10
PDF 1
https://s3-us-west-2.amazonaws.com/catsy.739/Molded_Sharp_Edge_Chipbreaker.pdf
PDF 2
https://s3-us-west-2.amazonaws.com/catsy.739/Small_Part_Tooling_Solutions.pdf
