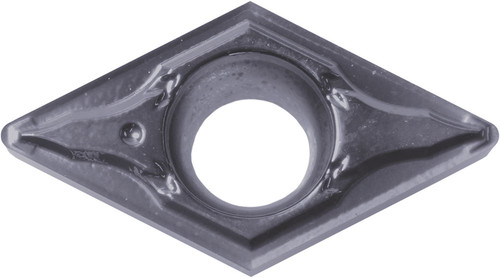

Kyocera DCGT 21502MFPGF PR1725 Grade PVD Carbide, Indexable Turning Insert

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TLM00191
$26.00
Kyocera DCGT 21502MFPGF PR1725 Grade PVD Carbide, 7 Degree, Diamond, Positive Rake Angle, Neutral Turning Insert for Light Interruption and Finishing in (P) Carbon/Alloy Steel and (P) Free-Cutting Steel, (M) Stainless Steel

Specifications

Series
ISOI
Unit of Measure
Inch
Hand Direction
Neutral
Material
Carbide
Coating/Finish
MEGACOAT NANO PLUS
IC Size (Metric)
6.35
Included Angle
55
Corner Radius (Decimal)
0.0040
Insert Style
DCGT
Insert Thickness (Fractional)
3/32
Insert Shape
55 Degree Diamond
Insert Holding Method
Screw or Clamp
Insert Size
21502
Old Material Number
8863443
Insert Thickness (Metric)
2.38
Machining Operations
Back Boring, Copying, External Turning, Sub-Spindle
Rake
Positive
IC Size (Fractional)
1/4
Corner Radius (Metric)
0.10
Number of Cutting Edges
2
Insert Grade
PR1725
Chip Breaker Type
GF
Cutting Range
Finishing
Usage Classification
Continuous to Light Interruption
ISO Designation
DCGT070201MFP-GF
Workpiece Material
Steel, Stainless Steel
ANSI Designation
DCGT21502MFPGFPR1725
Pack quantity
10
PDF 1
https://s3-us-west-2.amazonaws.com/catsy.739/Molded_Sharp_Edge_Chipbreaker.pdf
PDF 2
https://s3-us-west-2.amazonaws.com/catsy.739/Small_Part_Tooling_Solutions.pdf
Coating Process
PVD
