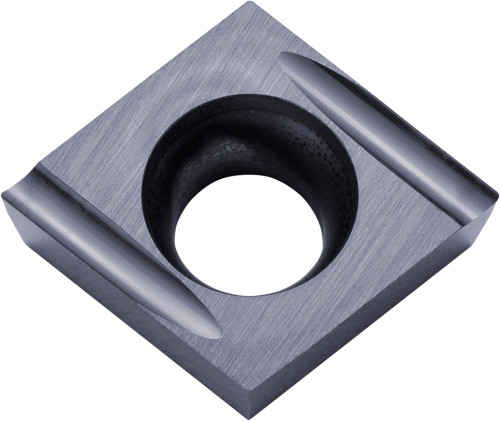

Kyocera Turning Insert CCGT21505MFRU PR1225: TKE01325

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TKE01325
$25.15

Kyocera ISOI turning insert for stainless steel, 1/4 in (6.35 mm) IC, 80 degree diamond shape, positive rake, 2 cutting edges, finishing cutting range, screw or clamp insert holding, right hand. Carbide, MEGACOAT (PVD) coating. Manufacturer part number TKE01325.

Specifications

Series
ISOI
Unit of Measure
Inch
Hand Direction
Right
Material
Carbide
Coating/Finish
MEGACOAT
IC Size (Metric)
6.35
Included Angle
80
Corner Radius (Decimal)
0.0080
Insert Style
CCGT
Insert Thickness (Fractional)
3/32
Insert Shape
80 Degree Diamond
Insert Holding Method
Screw or Clamp
Insert Size
21505
Secondary Workpiece Material
Steel
Insert Thickness (Metric)
2.38
Machining Operations
Boring, External Turning, Facing, Internal Facing, Sub-Spindle
Rake
Positive
IC Size (Fractional)
1/4
Corner Radius (Metric)
0.20
Number of Cutting Edges
2
Insert Grade
PR1225
Chip Breaker Type
U
Cutting Range
Finishing
Usage Classification
Continuous to Light Interruption
ISO Designation
CCGT060202MFR-U
Workpiece Material
Stainless Steel
ANSI Designation
CCGT21505MFRUPR1225
Pack quantity
10
Coating Process
PVD
Kyocera Turning Insert CCGT21505MFRU PR1225: TKE01325
$25.15
Add to Your List
Request a Quote

Buying in volume or need custom terms? Request a Quote.
