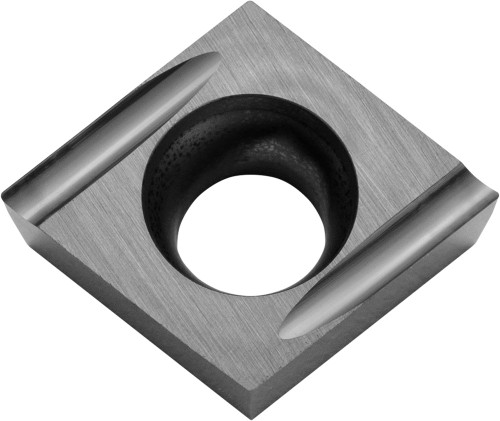

Kyocera Turning Insert CCGT32502FLU TN60: TSJ00150

Kyocera Turning Insert CCGT32502FLU TN60, manufacturer part number TSJ00150.

Specifications: IC Size: 3/8 in (9.525 mm); Insert Thickness: 5/32 in (3.97 mm); Corner Radius: 0.0040 in (0.10 mm); Insert Holding Method: Screw or Clamp; Old Material Number: 8807852; Rake: Positive; Number of Cutting Edges: 2; Cutting Range: Finishing; Usage Classification: Continuous; Insert Size: 32502; Hand Direction: Left; Insert Style: CCGT; Insert Shape: 80 Degree Diamond; ANSI Designation: CCGT32502FLUTN60; Chip Breaker Type: U; ISO Designation: CCGT09T301FL-U; Included Angle: 80 degrees; Machining Operations: Boring, External Turning, Facing, Internal Facing, Sub-Spindle; Insert Grade: TN60; Workpiece Material: Steel.

Material: Cermet. Coating/Finish: Uncoated. Series: ISOI. Unit of measure: Inch.
