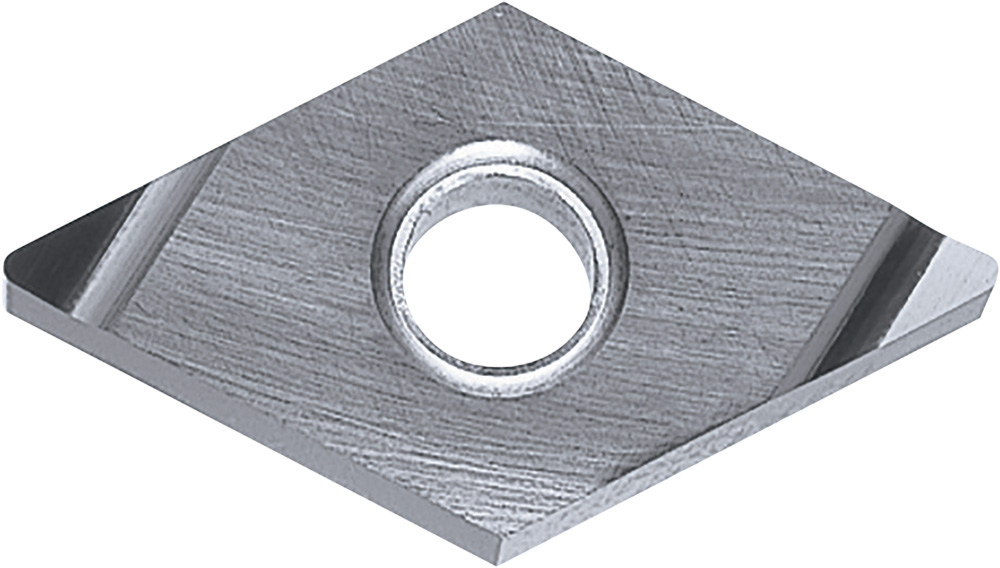

Kyocera DNGG 431R TN60 Grade Uncoated Cermet, Indexable Turning Insert

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TSJ00760
$37.19
Kyocera DNGG 431R TN60 Grade Uncoated Cermet, 0 Degree, Diamond, Negative Rake Angle, Right-Hand Turning Insert for Continuous and Medium in (P) Carbon/Alloy Steel

Specifications

Series
ISOI
Unit of Measure
Fractional
Cutting Direction
Right-Hand
Material
Cermet
Coating/Finish
Uncoated
Primary Workpiece Material
(P) Carbon/Alloy Steel
Corner Radius
1/64 Inch
Included Angle
55 degrees
Thickness
3/16 Inch
Style
DNGG
Application
Boring, Copying, External Turning
Shape
55 Degree Diamond
Insert Holding Method
Screw or Clamp
Size
431
Old Material Number
8801044
ANSI Part Number
DNGG431RTN60
ISO Part Number
DNGG150404R
Rake
Negative
Material Group / Grade
TN60
Corner Radius (Metric)
0.40
Number of Cutting Edges
4
Thickness (Metric)
4.76
Cutting Range
Medium
Usage Classification
Continuous
Insert Included Angle
55 degrees
Inscribed Circle (Metric)
12.70
Inscribed Circle
1/2 Inch
Pack quantity
10
Kyocera DNGG 431R TN60 Grade Uncoated Cermet, Indexable Turning Insert
$37.19
Add to Your List
Request a Quote

Buying in volume or need custom terms? Request a Quote.
