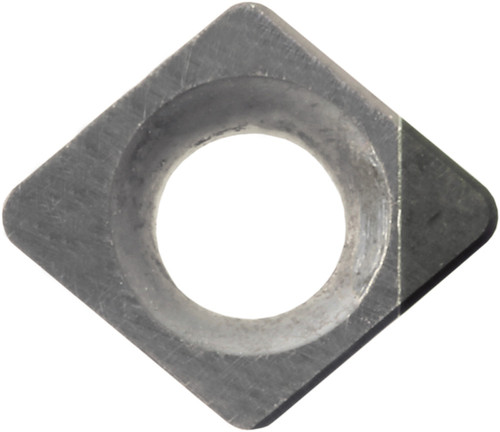

Kyocera Turning Insert CCMW141105T00315SE KBN10M: TBX01285

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TBX01285
$67.68

Kyocera ISOI turning insert for hardened steel, 0.1690 in (4.30 mm) IC, 80 degree diamond shape, positive rake, 1 cutting edge, finishing cutting range, screw or clamp insert holding, neutral hand. CBN, MEGACOAT (PVD) coating. Manufacturer part number TBX01285.

Specifications

Series
ISOI
Unit of Measure
Inch
Hand Direction
Neutral
Material
CBN
Coating/Finish
MEGACOAT
Machining Operations
Boring, External Turning, Facing, Internal Facing
Corner Radius (Decimal)
0.0080
Included Angle
80
ANSI Designation
CCMW141105T00315SEKBN10M
Insert Style
CCMW
Insert Grade
KBN10M
Insert Shape
80 Degree Diamond
Insert Holding Method
Screw or Clamp
Insert Size
141105
Workpiece Material
Hardened Steel
IC Size (Decimal)
0.1690
Rake
Positive
Insert Thickness (Metric)
1.80
Corner Radius (Metric)
0.20
Number of Cutting Edges
1
Insert Thickness (Decimal)
0.0710
Cutting Range
Finishing
Usage Classification
Continuous
IC Size (Metric)
4.30
Coating Process
PVD
ISO Designation
CCMW040102T00815SE
