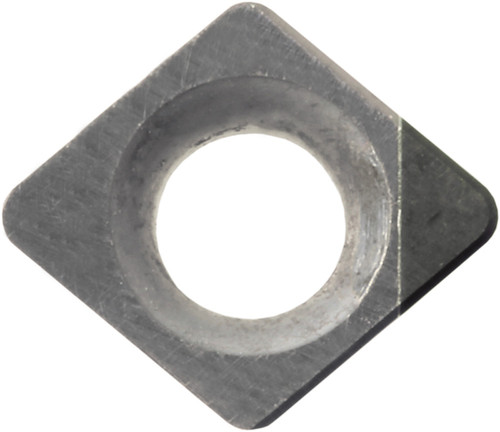

Kyocera CCMW 141105T00315SE KBN25M Grade CBN, Indexable Turning Insert

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TBZ01285
$67.68
Kyocera CCMW 141105T00315SE KBN25M Grade CBN, 7 Degree, Diamond, Positive Rake Angle, Neutral Turning Insert for Light Interruption and Medium in (H) Hardened Materials

Specifications

Series
ISOI
Unit of Measure
Imperial
Cutting Direction
Neutral
Material
CBN
Coating/Finish
PVD
Primary Workpiece Material
(H) Hardened Materials
Corner Radius
0.01 Inch
Included Angle
80 degrees
Thickness
0.07 Inch
Style
CCMW
Application
Boring, External Turning, Facing, Internal Facing
Shape
80 Degree Diamond
Insert Holding Method
Screw or Clamp
Size
141105
Old Material Number
8826775
ANSI Part Number
CCMW141105T00315SEKBN25M
ISO Part Number
CCMW040102T00815SE
Rake
Positive
Material Group / Grade
KBN25M
Corner Radius (Metric)
0.20
Number of Cutting Edges
1
Thickness (Metric)
1.80
Cutting Range
Medium
Usage Classification
Light Interruption
Insert Included Angle
80 degrees
Inscribed Circle (Metric)
4.30
Inscribed Circle
0.17 Inch
