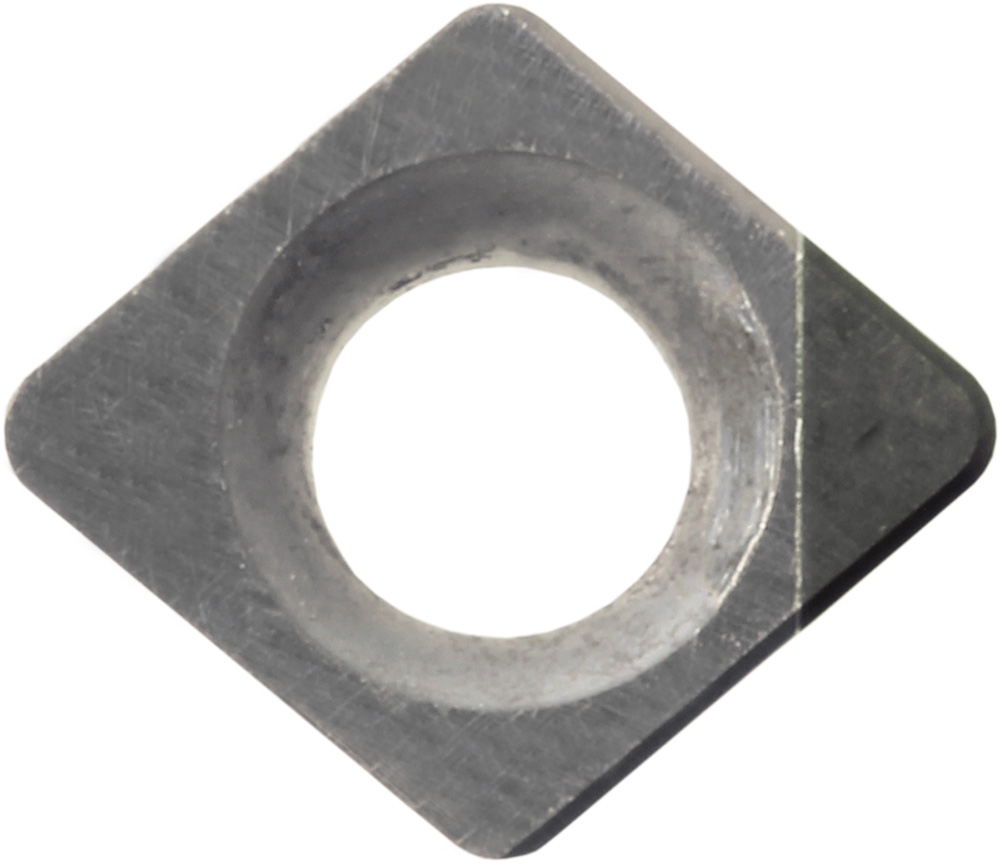

Kyocera Turning Insert CCMW14111T00315SE KBN25M: TBZ01286

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TBZ01286
$67.68

Kyocera ISOI turning insert for hardened steel, 0.1690 in (4.30 mm) IC, 80 degree diamond shape, positive rake, 1 cutting edge, medium cutting range, screw or clamp insert holding, neutral hand. CBN, MEGACOAT (PVD) coating. Manufacturer part number TBZ01286.

Specifications

Series
ISOI
Unit of Measure
Inch
Hand Direction
Neutral
Material
CBN
Coating/Finish
MEGACOAT
Machining Operations
Boring, External Turning, Facing, Internal Facing
Included Angle
80
ANSI Designation
CCMW14111T00315SEKBN25M
Insert Style
CCMW
Insert Grade
KBN25M
Insert Shape
80 Degree Diamond
Insert Holding Method
Screw or Clamp
Insert Size
14111
Workpiece Material
Hardened Steel
IC Size (Decimal)
0.1690
Rake
Positive
Insert Thickness (Metric)
1.80
Corner Radius (Metric)
0.40
Number of Cutting Edges
1
Corner Radius (Fractional)
1/64
Insert Thickness (Decimal)
0.0710
Cutting Range
Medium
Usage Classification
Continuous to Light Interruption
IC Size (Metric)
4.30
Coating Process
PVD
ISO Designation
CCMW040104T00815SE
