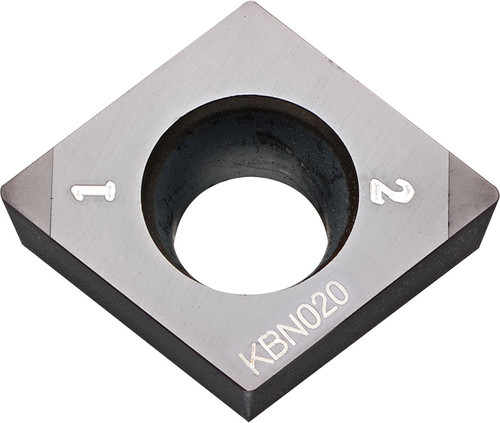

Kyocera Turning Insert CCMW3252S00525MES KBN020: TFC00065

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TFC00065
$121.55

Kyocera Turning Insert CCMW3252S00525MES KBN020, manufacturer part number TFC00065.

Specifications: IC Size: 3/8 in (9.525 mm); Insert Thickness: 5/32 in (3.97 mm); Corner Radius: 1/32 in (0.80 mm); Insert Holding Method: Screw or Clamp; Rake: Positive; Number of Cutting Edges: 2; Cutting Range: Finishing-Medium; Usage Classification: Continuous to Light Interruption; Insert Size: 3252; Hand Direction: Neutral; Insert Style: CCMW; Insert Shape: 80 Degree Diamond; ANSI Designation: CCMW3252S00525MESKBN020; ISO Designation: CCMW09T308S01225MES; Included Angle: 80 degrees; Machining Operations: Boring, External Turning, Facing, Internal Facing; Insert Grade: KBN020; Workpiece Material: Hardened Steel; Coating Process: PVD.

Material: CBN. Coating/Finish: MEGACOAT TOUGH. Series: ISOI. Unit of measure: Inch.

Specifications

Series
ISOI
Unit of Measure
Inch
Hand Direction
Neutral
Material
CBN
Coating/Finish
MEGACOAT TOUGH
Insert Thickness (Metric)
3.97
Corner Radius (Fractional)
1/32
Included Angle
80
ANSI Designation
CCMW3252S00525MESKBN020
Insert Style
CCMW
Machining Operations
Boring, External Turning, Facing, Internal Facing
Insert Shape
80 Degree Diamond
Insert Holding Method
Screw or Clamp
Insert Size
3252
Insert Grade
KBN020
Workpiece Material
Hardened Steel
Rake
Positive
Insert Thickness (Fractional)
5/32
Corner Radius (Metric)
0.80
Number of Cutting Edges
2
Coating Process
PVD
Cutting Range
Finishing-Medium
Usage Classification
Continuous to Light Interruption
IC Size (Metric)
9.525
ISO Designation
CCMW09T308S01225MES
IC Size (Fractional)
3/8
PDF 1
https://s3-us-west-2.amazonaws.com/catsy.739/KBN020_Coated_CBN_for_Hardened_Material.pdf
