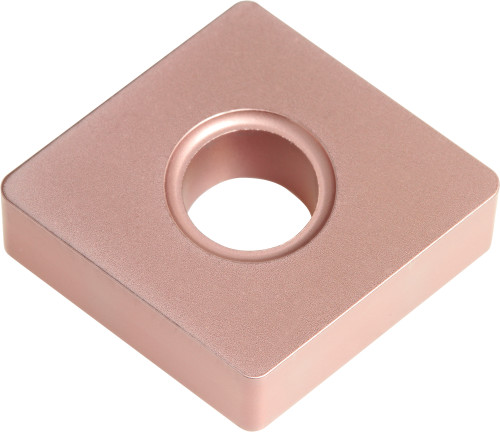

Kyocera CNMA 434 CA310 Grade CVD Carbide, Indexable Turning Insert

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TMC00563
$17.05
Kyocera CNMA 434 CA310 Grade CVD Carbide, 0 Degree, Diamond, Negative Rake Angle, Neutral Turning Insert for Continuous and Roughing in (K) Gray Cast Iron and (K) Nodular Cast Iron

Specifications

Series
ISOI
Unit of Measure
Fractional
Cutting Direction
Neutral
Material
Carbide
Coating/Finish
CVD
Primary Workpiece Material
(K) Gray Cast Iron
Corner Radius
1/16 Inch
Included Angle
80 degrees
Thickness
3/16 Inch
Style
CNMA
Application
Boring, External Turning, Facing, Internal Facing
Shape
80 Degree Diamond
Insert Holding Method
Screw or Clamp
Size
434
Old Material Number
8848599
ANSI Part Number
CNMA434CA310
ISO Part Number
CNMA120416
Rake
Negative
Material Group / Grade
CA310
Corner Radius (Metric)
1.60
Number of Cutting Edges
4
Thickness (Metric)
4.76
Cutting Range
Roughing
Usage Classification
Continuous
Insert Included Angle
80 degrees
Inscribed Circle (Metric)
12.70
Inscribed Circle
1/2 Inch
Pack quantity
10
