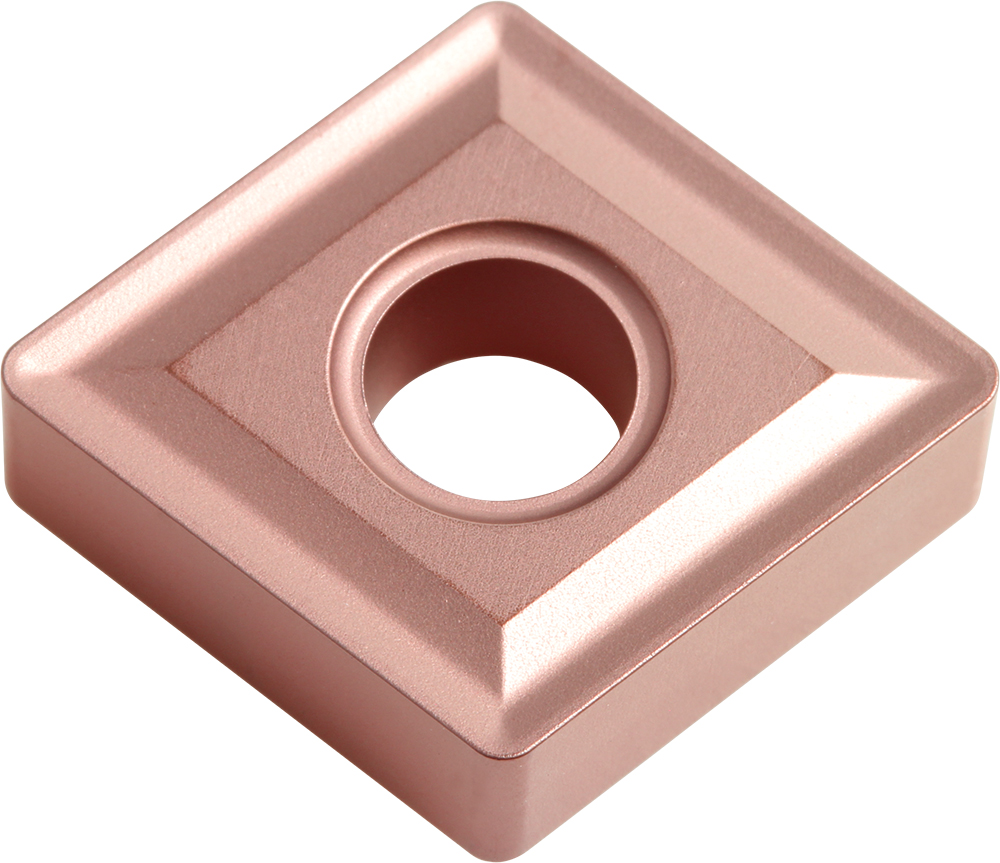

Kyocera Turning Insert CNMG434 CA310: TMC00703

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TMC00703
$18.17

Kyocera Turning Insert CNMG434 CA310, manufacturer part number TMC00703.

Specifications: IC Size: 1/2 in (12.70 mm); Insert Thickness: 3/16 in (4.76 mm); Corner Radius: 1/16 in (1.60 mm); Insert Holding Method: Screw or Clamp; Old Material Number: 8848607; Rake: Negative; Number of Cutting Edges: 4; Cutting Range: Roughing; Usage Classification: Continuous; Insert Size: 434; Hand Direction: Neutral; Insert Style: CNMG; Insert Shape: 80 Degree Diamond; ANSI Designation: CNMG434CA310; ISO Designation: CNMG120416; Included Angle: 80 degrees; Machining Operations: Boring, External Turning, Facing, Internal Facing; Insert Grade: CA310; Workpiece Material: Cast Iron; Coating Process: CVD.

Material: Carbide. Coating/Finish: TiCN/Al2O3/Ti. Series: ISOI. Unit of measure: Inch.

Specifications

Series
ISOI
Unit of Measure
Inch
Hand Direction
Neutral
Material
Carbide
Coating/Finish
TiCN/Al2O3/Ti
Insert Thickness (Fractional)
3/16
Corner Radius (Fractional)
1/16
Included Angle
80
ANSI Designation
CNMG434CA310
Insert Style
CNMG
Insert Thickness (Metric)
4.76
Insert Shape
80 Degree Diamond
Insert Holding Method
Screw or Clamp
Insert Size
434
Old Material Number
8848607
Machining Operations
Boring, External Turning, Facing, Internal Facing
Insert Grade
CA310
Rake
Negative
IC Size (Metric)
12.70
Corner Radius (Metric)
1.60
Number of Cutting Edges
4
Workpiece Material
Cast Iron
Cutting Range
Roughing
Usage Classification
Continuous
IC Size (Fractional)
1/2
Coating Process
CVD
ISO Designation
CNMG120416
Pack quantity
10
