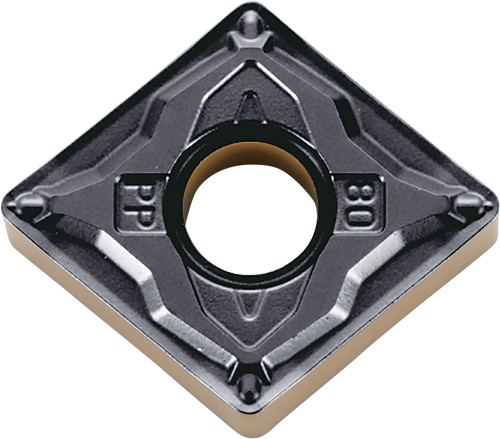

Kyocera Turning Insert CNMG4305PP CA125P: TMK00001

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TMK00001
$18.17

Kyocera ISOI turning insert for steel, 1/2 in (12.70 mm) IC, 80 degree diamond shape, negative rake, 4 cutting edges, finishing cutting range, screw or clamp insert holding, neutral hand. Carbide, TiCN/Al2O3/TiN (CVD) coating. Manufacturer part number TMK00001.

Specifications

Series
ISOI
Unit of Measure
Inch
Hand Direction
Neutral
Material
Carbide
Coating/Finish
TiCN/Al2O3/TiN
IC Size (Metric)
12.70
Included Angle
80
Corner Radius (Decimal)
0.0080
Insert Style
CNMG
Insert Thickness (Fractional)
3/16
Insert Shape
80 Degree Diamond
Insert Holding Method
Screw or Clamp
Insert Size
4305
Insert Thickness (Metric)
4.76
Machining Operations
Boring, External Turning, Facing, Internal Facing
Rake
Negative
IC Size (Fractional)
1/2
Corner Radius (Metric)
0.20
Number of Cutting Edges
4
Insert Grade
CA125P
Chip Breaker Type
PP
Cutting Range
Finishing
Usage Classification
Continuous to Light Interruption
ISO Designation
CNMG120402PP
Workpiece Material
Steel
ANSI Designation
CNMG4305PPCA125P
Pack quantity
10
PDF 1
https://s3-us-west-2.amazonaws.com/catsy.739/CA115P_CA125P_CVD_Coated_Carbide_for_Steel.pdf
Coating Process
CVD
