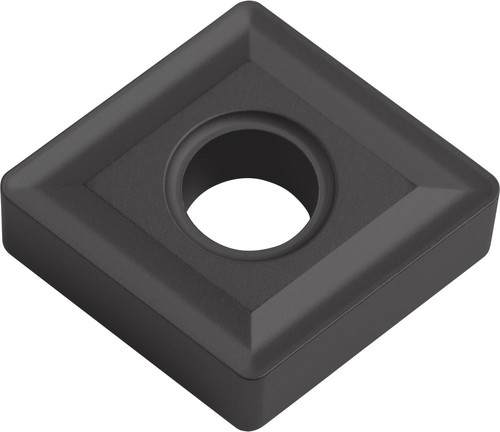

Kyocera Turning Insert CNMG434 CA4515: TJH00703

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TJH00703
$18.17

Kyocera Turning Insert CNMG434 CA4515, order reference TJH00703.

Specifications: IC Size: 1/2 in (12.70 mm); Insert Thickness: 3/16 in (4.76 mm); Corner Radius: 1/16 in (1.60 mm); Insert Holding Method: Screw or Clamp; Old Material Number: 8831334; Rake: Negative; Number of Cutting Edges: 4; Cutting Range: Roughing; Usage Classification: Heavy Interruption; Insert Size: 434; Hand Direction: Neutral; Insert Style: CNMG; Insert Shape: 80 Degree Diamond; ANSI Designation: CNMG434CA4515; ISO Designation: CNMG120416; Included Angle: 80 degrees; Machining Operations: Boring, External Turning, Facing, Internal Facing; Insert Grade: CA4515; Workpiece Material: Cast Iron; Coating Process: CVD.

Material: Carbide. Series: ISOI. Unit of measure: Inch.

Specifications

Series
ISOI
Unit of Measure
Inch
Hand Direction
Neutral
Material
Carbide
Insert Thickness (Metric)
4.76
IC Size (Metric)
12.70
Corner Radius (Fractional)
1/16
Included Angle
80
ANSI Designation
CNMG434CA4515
Insert Style
CNMG
Machining Operations
Boring, External Turning, Facing, Internal Facing
Insert Shape
80 Degree Diamond
Insert Holding Method
Screw or Clamp
Insert Size
434
Old Material Number
8831334
Insert Grade
CA4515
Workpiece Material
Cast Iron
Rake
Negative
Insert Thickness (Fractional)
3/16
Corner Radius (Metric)
1.60
Number of Cutting Edges
4
Coating Process
CVD
Cutting Range
Roughing
Usage Classification
Heavy Interruption
IC Size (Fractional)
1/2
ISO Designation
CNMG120416
Pack quantity
10
PDF 3
https://s3-us-west-2.amazonaws.com/catsy.739/CA45-Series-8pg-Brochure.pdf
