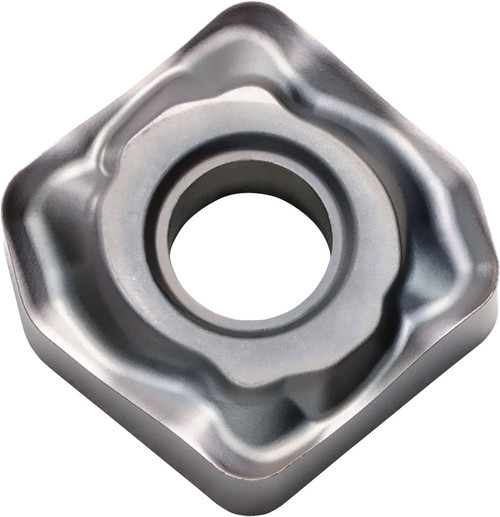

Kyocera CNMM 43XRSX PR115S Grade PVD Carbide, Indexable Turning Insert

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TLV00033
$14.53
Kyocera CNMM 43XRSX PR115S Grade PVD Carbide, 0 Degree, Diamond, Negative Rake Angle, Right-Hand Turning Insert for Continuous and Roughing in (S) Heat-Resistant Alloy

Specifications

Series
ISOI
Unit of Measure
Fractional
Cutting Direction
Right-Hand
Material
Carbide
Coating/Finish
PVD
Primary Workpiece Material
(S) Heat-Resistant Alloy
Included Angle
80 degrees
Thickness
3/16 Inch
Style
CNMM
Application
Boring, External Turning, Facing, Internal Facing
Shape
80 Degree Diamond
Insert Holding Method
Screw or Clamp
Size
43
ANSI Part Number
CNMM43XRSXPR115S
ISO Part Number
CNMM1204XR-SX
Rake
Negative
Material Group / Grade
PR115S
Number of Cutting Edges
2
Thickness (Metric)
4.76
Chipbreaker
SX
Cutting Range
Roughing
Usage Classification
Continuous
Insert Included Angle
80 degrees
Inscribed Circle (Metric)
12.70
Inscribed Circle
1/2 Inch
Pack quantity
10
PDF 1
https://s3-us-west-2.amazonaws.com/catsy.739/PR115S_PR120S_PVD_Coated_Carbide.pdf
