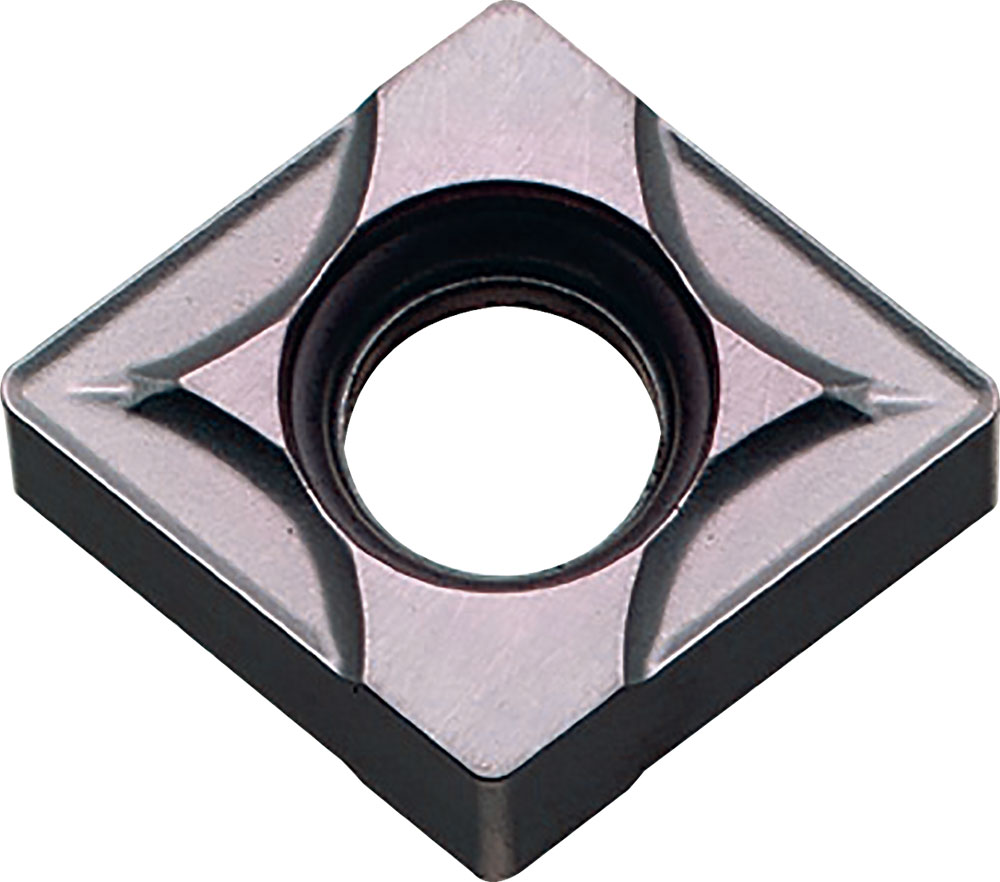

Kyocera CNMU 2421EGK PR1535 Grade PVD Carbide, Indexable Turning Insert

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TLC01668
$22.10
Kyocera CNMU 2421EGK PR1535 Grade PVD Carbide, 0 Degree, Diamond, Negative Rake Angle, Neutral Turning Insert for Light Interruption and Medium-Roughing in (S) Heat-Resistant Alloy, (S) Titanium Alloy, (M) Stainless Steel

Specifications

Series
DSSS
Unit of Measure
Imperial
Cutting Direction
Neutral
Material
Carbide
Coating/Finish
PVD
Primary Workpiece Material
(M) Stainless Steel|(S) Heat-Resistant Alloy|(S) Titanium Alloy
Included Angle
80 degrees
Style
CNMU
Application
External Turning, Facing
Shape
80 Degree Diamond
Insert Holding Method
Screw or Clamp
Size
2421
Old Material Number
8846147
ANSI Part Number
CNMU2421EGKPR1535
ISO Part Number
CNMU070304E-GK
Rake
Negative
Material Group / Grade
PR1535
Corner Radius (Metric)
0.40
Number of Cutting Edges
4
Corner Radius (Fractional)
1/64
Thickness (Fractional)
1/8
Thickness (Metric)
3.18
Chipbreaker
GK
Cutting Range
Medium-Roughing
Usage Classification
Light Interruption
Insert Included Angle
80 degrees
Inscribed Circle (Metric)
7.50
Inscribed Circle
0.30 Inch
Pack quantity
10
