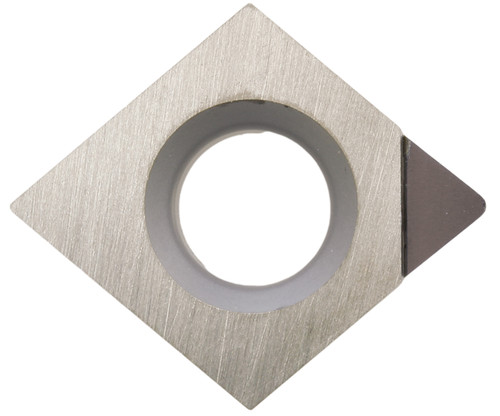

Kyocera Turning Insert CPMH3205NE KPD001: TBR01886

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TBR01886
$242.58

Kyocera Turning Insert CPMH3205NE KPD001, manufacturer part number TBR01886.

Specifications: IC Size: 3/8 in (9.525 mm); Insert Thickness: 1/8 in (3.18 mm); Corner Radius: 0.0080 in (0.20 mm); Insert Holding Method: Screw or Clamp; Old Material Number: 8831010; Rake: Positive; Number of Cutting Edges: 1; Cutting Range: Finishing-Medium; Usage Classification: Continuous; Insert Size: 3205; Hand Direction: Neutral; Insert Style: CPMH; Insert Shape: 80 Degree Diamond; ANSI Designation: CPMH3205NEKPD001; ISO Designation: CPMH090302NE; Included Angle: 80 degrees; Machining Operations: Boring, Internal Facing; Insert Grade: KPD001; Workpiece Material: Non-Ferrous, High-Temp Alloy.

Material: PCD. Coating/Finish: Uncoated. Series: ISOI. Unit of measure: Inch.

Specifications

Series
ISOI
Unit of Measure
Inch
Hand Direction
Neutral
Material
PCD
Coating/Finish
Uncoated
IC Size (Metric)
9.525
Included Angle
80
Corner Radius (Decimal)
0.0080
Insert Style
CPMH
Insert Thickness (Metric)
3.18
Insert Shape
80 Degree Diamond
Insert Holding Method
Screw or Clamp
Insert Size
3205
Old Material Number
8831010
Machining Operations
Boring, Internal Facing
Insert Grade
KPD001
Rake
Positive
Insert Thickness (Fractional)
1/8
Corner Radius (Metric)
0.20
Number of Cutting Edges
1
Workpiece Material
Non-Ferrous, High-Temp Alloy
Cutting Range
Finishing-Medium
Usage Classification
Continuous
IC Size (Fractional)
3/8
ANSI Designation
CPMH3205NEKPD001
ISO Designation
CPMH090302NE
