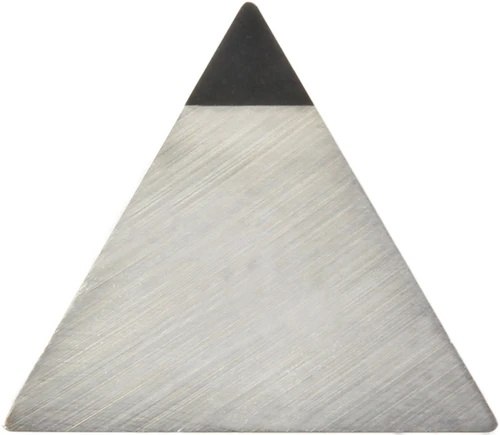

Kyocera Turning Insert TPG321SE KPD001: TBR05152

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TBR05152
$64.57

Kyocera Turning Insert TPG321SE KPD001, manufacturer part number TBR05152.

Specifications: IC Size: 3/8 in (9.525 mm); Insert Thickness: 1/8 in (3.18 mm); Corner Radius: 1/64 in (0.40 mm); Insert Holding Method: Clamp; Old Material Number: 8815124; Rake: Positive; Number of Cutting Edges: 1; Cutting Range: Finishing-Medium; Usage Classification: Continuous; Insert Size: 321; Hand Direction: Neutral; Insert Style: TPG; ANSI Designation: TPG321SEKPD001; ISO Designation: TPGN160304SE; Included Angle: 60 degrees; Machining Operations: Boring, Chamfering, External Turning, Facing; Insert Grade: KPD001; Workpiece Material: Non-Ferrous, High-Temp Alloy; Insert Shape: Triangle.

Material: PCD. Coating/Finish: Uncoated. Series: ISOI. Unit of measure: Inch.

Specifications

Series
ISOI
Unit of Measure
Inch
Hand Direction
Neutral
Material
PCD
Coating/Finish
Uncoated
Insert Thickness (Fractional)
1/8
Corner Radius (Fractional)
1/64
Included Angle
60
ANSI Designation
TPG321SEKPD001
Insert Style
TPG
Machining Operations
Boring, Chamfering, External Turning, Facing
Insert Shape
Triangle
Insert Holding Method
Clamp
Insert Size
321
Old Material Number
8815124
Insert Grade
KPD001
Workpiece Material
Non-Ferrous, High-Temp Alloy
Rake
Positive
Insert Thickness (Metric)
3.18
Corner Radius (Metric)
0.40
Number of Cutting Edges
1
Cutting Range
Finishing-Medium
Usage Classification
Continuous
IC Size (Metric)
9.525
ISO Designation
TPGN160304SE
IC Size (Fractional)
3/8
Kyocera Turning Insert TPG321SE KPD001: TBR05152
$64.57
