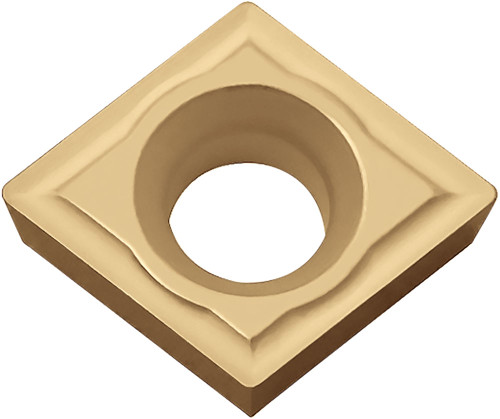

Kyocera Turning Insert CPMH322 CA525: TAC01381

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TAC01381
$21.38

Kyocera ISOI turning insert for steel, 3/8 in (9.525 mm) IC, 80 degree diamond shape, positive rake, 2 cutting edges, medium cutting range, screw or clamp insert holding, neutral hand. Carbide, TiCN/Al2O3/TiN (CVD) coating. Manufacturer part number TAC01381.

Specifications

Series
ISOI
Unit of Measure
Inch
Hand Direction
Neutral
Material
Carbide
Coating/Finish
TiCN/Al2O3/TiN
Insert Thickness (Metric)
3.18
Corner Radius (Fractional)
1/32
Included Angle
80
ANSI Designation
CPMH322CA525
Insert Style
CPMH
Machining Operations
Boring, Internal Facing
Insert Shape
80 Degree Diamond
Insert Holding Method
Screw or Clamp
Insert Size
322
Insert Grade
CA525
Workpiece Material
Steel
Rake
Positive
Insert Thickness (Fractional)
1/8
Corner Radius (Metric)
0.80
Number of Cutting Edges
2
Coating Process
CVD
Cutting Range
Medium
Usage Classification
Continuous to Light Interruption
IC Size (Metric)
9.525
ISO Designation
CPMH090308
IC Size (Fractional)
3/8
Pack quantity
10
PDF 2
https://s3-us-west-2.amazonaws.com/catsy.739/Aerospace_Tooling_Solutions_W.pdf
PDF 3
https://s3-us-west-2.amazonaws.com/catsy.739/CA5_Series_W.pdf
