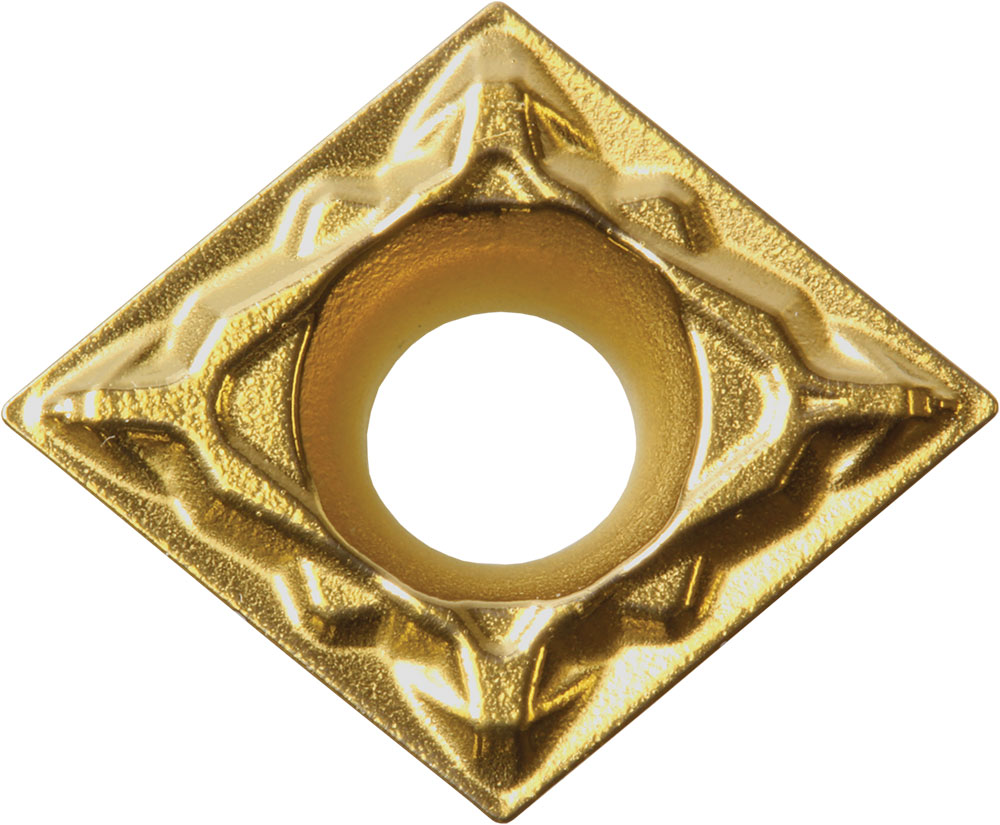

Kyocera Turning Insert CPMT321PP CA125P: TMK00330
SKU: KYP-TMK00330
Kyocera Turning Insert CPMT321PP PV710, manufacturer part number TLF02272.
Specifications: IC Size: 3/8 in (9.525 mm); Insert Thickness: 1/8 in (3.18 mm); Corner Radius: 1/64 in (0.40 mm); Insert Holding Method: Screw or Clamp; Old Material Number: 8847481; Rake: Positive; Number of Cutting Edges: 2; Cutting Range: Finishing; Usage Classification: Continuous; Insert Size: 321; Hand Direction: Neutral; Insert Style: CPMT; Insert Shape: 80 Degree Diamond; ANSI Designation: CPMT321PPPV710; Chip Breaker Type: PP; ISO Designation: CPMT090304PP; Included Angle: 80 degrees; Machining Operations: Boring, Internal Facing; Insert Grade: PV710; Workpiece Material: Steel; Coating Process: PVD.
Material: Cermet. Coating/Finish: TiCN (MEGACOAT NANO). Series: ISOI. Unit of measure: Inch.
