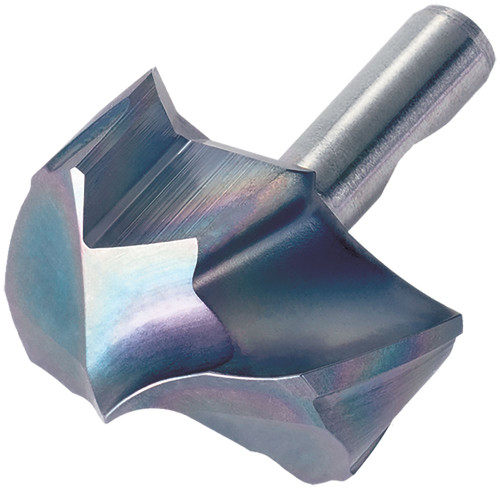

Kyocera DA 0980MHQS PR1535 Grade PVD Carbide, Replaceable Drill Tip

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TLC40179
$228.27
Kyocera DA 0980MHQS PR1535 Grade PVD Carbide, Replaceable Drill Tip with a 0.3858" (9.80mm) Cutting Diameter, Right-Hand Drilling Insert for Stainless and Difficult-to-cut Materials

Specifications

Series
DRA
Unit of Measure
Imperial
Cutting Direction
Right
Material
Carbide
Coating/Finish
PVD
Primary Workpiece Material
(M) Stainless Steel|(S) Heat-Resistant Alloy|(S) Titanium Alloy
Cutting Diameter
0.39 Inch
Grade
PR1535
Application
Drilling
Insert Holding Method
Screw
Old Material Number
8868117
ANSI Part Number
DA0980MHQSPR1535
ISO Part Number
DA0980M-HQS
Tool Style
DA
Number of Cutting Edges
2
Cutting Diameter (Decimal)
0.39
Cutting Diameter (Metric)
9.80
Cutting Diameter Minimum (Decimal)
0.39
Cutting Diameter Minimum (Metric)
9.80
Cutting Diameter Maximum (Decimal)
0.39
Cutting Diameter Maximum (Metric)
9.80
Insert Size
0980
Chipbreaker
HQS
PDF 1
https://s3-us-west-2.amazonaws.com/catsy.739/DRA_Magic_Drills_W.pdf
PDF 2
https://s3-us-west-2.amazonaws.com/catsy.739/Automotive_Tooling_Solutions.pdf
