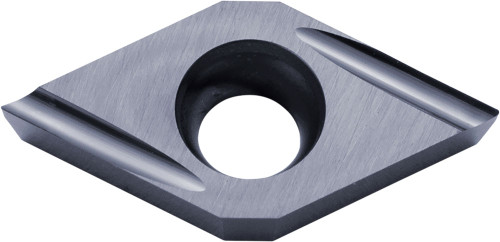

Kyocera Turning Insert DCET21501FRUSF PR930: 55 Degree Diamond, 2 Cutting Edges, .001" Nose Radius, TKT00313

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TKT00313
$49.34

Turn, face and profile with this 1/4" IC PR930 grade turning insert.

Kyocera Series ISOI inserts are made for steel and high-temp alloys.

  • Insert style: DCET
  • Insert shape: 55 Degree Diamond
  • IC size: 1/4"
  • Insert thickness: 3/32"
  • Corner radius: .001"
  • Chip breaker type: USF
  • Insert grade: PR930
  • Coating/finish: TiCN
  • Workpiece material: Steel
  • ANSI designation: DCET21501FRUSFPR930

Kyocera part number TKT00313.

Specifications

Series
ISOI
Unit of Measure
Inch
Hand Direction
Right
Material
Carbide
Coating/Finish
TiCN
IC Size (Metric)
6.35
Included Angle
55
Corner Radius (Decimal)
0.0010
Insert Style
DCET
Insert Thickness (Fractional)
3/32
Insert Shape
55 Degree Diamond
Insert Holding Method
Screw or Clamp
Insert Size
21501
Secondary Workpiece Material
Stainless Steel
Insert Thickness (Metric)
2.38
Machining Operations
Back Boring, Copying, External Turning, Sub-Spindle
Rake
Positive
IC Size (Fractional)
1/4
Corner Radius (Metric)
0.03
Number of Cutting Edges
2
Insert Grade
PR930
Chip Breaker Type
USF
Cutting Range
Finishing
Usage Classification
Continuous to Light Interruption
ISO Designation
DCET0702003FR-USF
Workpiece Material
Steel
ANSI Designation
DCET21501FRUSFPR930
Pack quantity
10
Coating Process
PVD
$49.34
