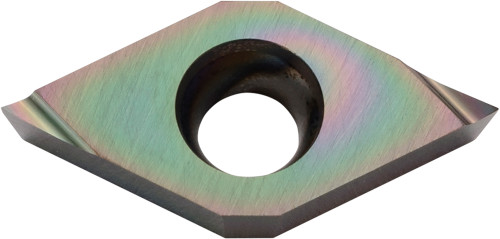

Kyocera Turning Insert DCET21505MRF PDL010: TLK03007

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TLK03007
$28.58

Kyocera Turning Insert DCET21505MRF PDL010, manufacturer part number TLK03007.

Specifications: IC Size: 1/4 in (6.35 mm); Insert Thickness: 3/32 in (2.38 mm); Corner Radius: 0.0080 in (0.20 mm); Insert Holding Method: Screw or Clamp; Old Material Number: 8860789; Rake: Positive; Number of Cutting Edges: 2; Cutting Range: Finishing; Usage Classification: Continuous; Insert Size: 21505; Hand Direction: Right; Insert Style: DCET; Insert Shape: 55 Degree Diamond; ANSI Designation: DCET21505MRFPDL010; Chip Breaker Type: F; ISO Designation: DCET070202MR-F; Included Angle: 55 degrees; Machining Operations: Back Boring, Copying, External Turning, Sub-Spindle; Insert Grade: PDL010; Workpiece Material: Non-Ferrous.

Material: Carbide. Coating/Finish: DLC. Series: ISOI. Unit of measure: Inch.

Specifications

Series
ISOI
Unit of Measure
Inch
Hand Direction
Right
Material
Carbide
Coating/Finish
DLC
IC Size (Metric)
6.35
Included Angle
55
Corner Radius (Decimal)
0.0080
Insert Style
DCET
Insert Thickness (Fractional)
3/32
Insert Shape
55 Degree Diamond
Insert Holding Method
Screw or Clamp
Insert Size
21505
Old Material Number
8860789
Insert Thickness (Metric)
2.38
Machining Operations
Back Boring, Copying, External Turning, Sub-Spindle
Rake
Positive
IC Size (Fractional)
1/4
Corner Radius (Metric)
0.20
Number of Cutting Edges
2
Insert Grade
PDL010
Chip Breaker Type
F
Cutting Range
Finishing
Usage Classification
Continuous
ISO Designation
DCET070202MR-F
Workpiece Material
Non-Ferrous
ANSI Designation
DCET21505MRFPDL010
Pack quantity
10
PDF 3
https://s3-us-west-2.amazonaws.com/catsy.739/PDL010_PDL025_Inserts_for_Aluminum.pdf
Kyocera Turning Insert DCET21505MRF PDL010: TLK03007
$28.58
Add to Your List
Request a Quote

Buying in volume or need custom terms? Request a Quote.
