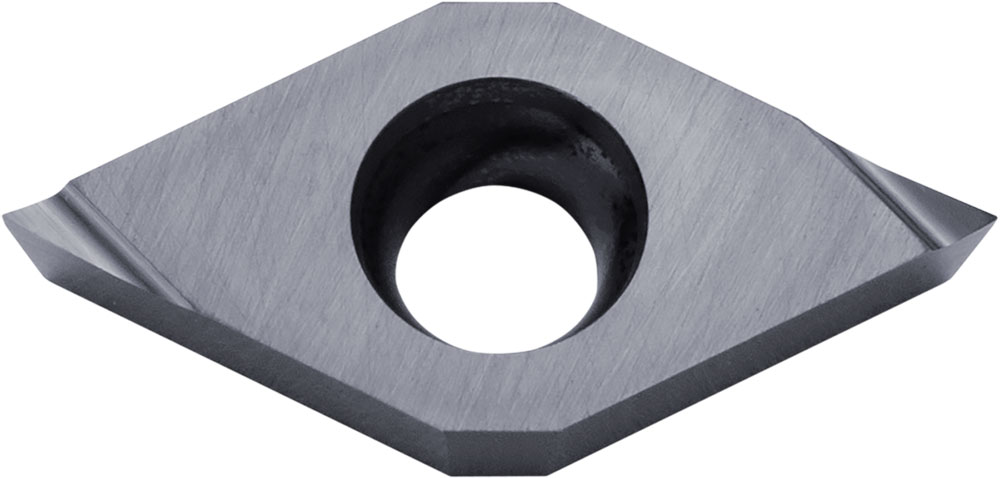

Kyocera Turning Insert DCET21505MRF TN620: TSR02802

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TSR02802
$31.59

Kyocera Turning Insert DCET21505MRF TN620, manufacturer part number TSR02802.

Specifications: IC Size: 1/4 in (6.35 mm); Insert Thickness: 3/32 in (2.38 mm); Corner Radius: 0.0080 in (0.20 mm); Insert Holding Method: Screw or Clamp; Old Material Number: 8862575; Rake: Positive; Number of Cutting Edges: 2; Cutting Range: Finishing; Usage Classification: Continuous to Light Interruption; Insert Size: 21505; Hand Direction: Right; Insert Style: DCET; Insert Shape: 55 Degree Diamond; ANSI Designation: DCET21505MRFTN620; Chip Breaker Type: F; ISO Designation: DCET070202MR-F; Included Angle: 55 degrees; Machining Operations: Back Boring, Copying, External Turning, Sub-Spindle; Insert Grade: TN620; Workpiece Material: Steel.

Material: Cermet. Coating/Finish: Uncoated. Series: ISOI. Unit of measure: Inch.

Specifications

Series
ISOI
Unit of Measure
Inch
Hand Direction
Right
Material
Cermet
Coating/Finish
Uncoated
IC Size (Metric)
6.35
Included Angle
55
Corner Radius (Decimal)
0.0080
Insert Style
DCET
Insert Thickness (Fractional)
3/32
Insert Shape
55 Degree Diamond
Insert Holding Method
Screw or Clamp
Insert Size
21505
Old Material Number
8862575
Insert Thickness (Metric)
2.38
Machining Operations
Back Boring, Copying, External Turning, Sub-Spindle
Rake
Positive
IC Size (Fractional)
1/4
Corner Radius (Metric)
0.20
Number of Cutting Edges
2
Insert Grade
TN620
Chip Breaker Type
F
Cutting Range
Finishing
Usage Classification
Continuous to Light Interruption
ISO Designation
DCET070202MR-F
Workpiece Material
Steel
ANSI Designation
DCET21505MRFTN620
Pack quantity
10
