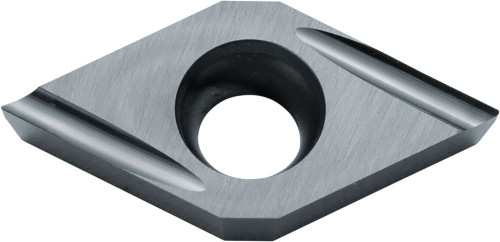

Kyocera Turning Insert DCET32502FRUSF TN60: TSJ07365

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TSJ07365
$30.56

Kyocera Turning Insert DCET32502FRUSF TN60, manufacturer part number TSJ07365.

Specifications: IC Size: 3/8 in (9.525 mm); Insert Thickness: 5/32 in (3.97 mm); Corner Radius: 0.0040 in (0.10 mm); Insert Holding Method: Screw or Clamp; Old Material Number: 8817581; Rake: Positive; Number of Cutting Edges: 2; Cutting Range: Finishing; Usage Classification: Continuous; Insert Size: 32502; Hand Direction: Right; Insert Style: DCET; Insert Shape: 55 Degree Diamond; ANSI Designation: DCET32502FRUSFTN60; Chip Breaker Type: USF; ISO Designation: DCET11T301FR-USF; Included Angle: 55 degrees; Machining Operations: Back Boring, Copying, External Turning, Sub-Spindle; Insert Grade: TN60; Workpiece Material: Steel.

Material: Cermet. Coating/Finish: Uncoated. Series: ISOI. Unit of measure: Inch.

Specifications

Series
ISOI
Unit of Measure
Inch
Hand Direction
Right
Material
Cermet
Coating/Finish
Uncoated
Insert Thickness (Fractional)
5/32
Included Angle
55
Corner Radius (Decimal)
0.0040
Insert Style
DCET
Insert Thickness (Metric)
3.97
Insert Shape
55 Degree Diamond
Insert Holding Method
Screw or Clamp
Insert Size
32502
Old Material Number
8817581
Machining Operations
Back Boring, Copying, External Turning, Sub-Spindle
Insert Grade
TN60
Rake
Positive
IC Size (Metric)
9.525
Corner Radius (Metric)
0.10
Number of Cutting Edges
2
Workpiece Material
Steel
ISO Designation
DCET11T301FR-USF
Cutting Range
Finishing
Usage Classification
Continuous
IC Size (Fractional)
3/8
ANSI Designation
DCET32502FRUSFTN60
Chip Breaker Type
USF
Pack quantity
10
Kyocera Turning Insert DCET32502FRUSF TN60: TSJ07365
$30.56
Add to Your List
Request a Quote

Buying in volume or need custom terms? Request a Quote.
