Kyocera Turning Insert DCET32502MFRU PDL010: TLK03125

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TLK03125
$37.11

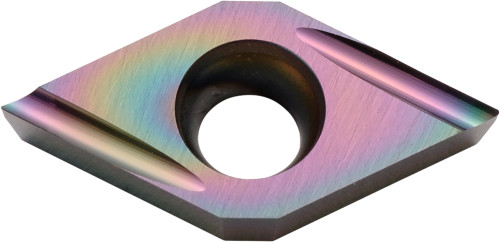

Kyocera Turning Insert DCET32502MFRU PDL010, manufacturer part number TLK03125.

Specifications: IC Size: 3/8 in (9.525 mm); Insert Thickness: 5/32 in (3.97 mm); Corner Radius: 0.0040 in (0.10 mm); Insert Holding Method: Screw or Clamp; Old Material Number: 8860804; Rake: Positive; Number of Cutting Edges: 2; Cutting Range: Finishing; Usage Classification: Continuous; Insert Size: 32502; Hand Direction: Right; Insert Style: DCET; Insert Shape: 55 Degree Diamond; ANSI Designation: DCET32502MFRUPDL010; Chip Breaker Type: U; ISO Designation: DCET11T301MFR-U; Included Angle: 55 degrees; Machining Operations: Back Boring, Copying, External Turning, Sub-Spindle; Insert Grade: PDL010; Workpiece Material: Non-Ferrous.

Material: Carbide. Coating/Finish: DLC. Series: ISOI. Unit of measure: Inch.

Specifications

Series
ISOI
Unit of Measure
Inch
Hand Direction
Right
Material
Carbide
Coating/Finish
DLC
Insert Thickness (Fractional)
5/32
Included Angle
55
Corner Radius (Decimal)
0.0040
Insert Style
DCET
Insert Thickness (Metric)
3.97
Insert Shape
55 Degree Diamond
Insert Holding Method
Screw or Clamp
Insert Size
32502
Old Material Number
8860804
Machining Operations
Back Boring, Copying, External Turning, Sub-Spindle
Insert Grade
PDL010
Rake
Positive
IC Size (Metric)
9.525
Corner Radius (Metric)
0.10
Number of Cutting Edges
2
Workpiece Material
Non-Ferrous
ISO Designation
DCET11T301MFR-U
Cutting Range
Finishing
Usage Classification
Continuous
IC Size (Fractional)
3/8
ANSI Designation
DCET32502MFRUPDL010
Chip Breaker Type
U
Pack quantity
10
PDF 3
https://s3-us-west-2.amazonaws.com/catsy.739/PDL010_PDL025_Inserts_for_Aluminum.pdf
