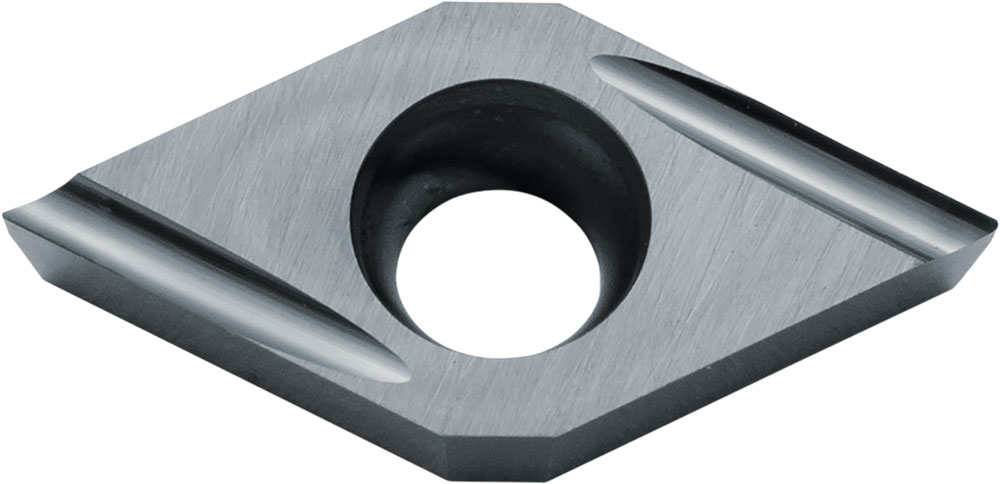

Kyocera Turning Insert DCET32502MFRU PR1725: TLM00162

Kyocera Turning Insert DCET32502MFRU PR1725, manufacturer part number TLM00162.

Specifications: IC Size: 3/8 in (9.525 mm); Insert Thickness: 5/32 in (3.97 mm); Corner Radius: 0.0040 in (0.10 mm); Insert Holding Method: Screw or Clamp; Old Material Number: 8863414; Rake: Positive; Number of Cutting Edges: 2; Cutting Range: Finishing; Usage Classification: Continuous to Light Interruption; Insert Size: 32502; Hand Direction: Right; Insert Style: DCET; Insert Shape: 55 Degree Diamond; ANSI Designation: DCET32502MFRUPR1725; Chip Breaker Type: U; ISO Designation: DCET11T301MFR-U; Included Angle: 55 degrees; Machining Operations: Back Boring, Copying, External Turning, Sub-Spindle; Insert Grade: PR1725; Workpiece Material: Steel, Stainless Steel; Coating Process: PVD.

Material: Carbide. Coating/Finish: MEGACOAT NANO PLUS. Series: ISOI. Unit of measure: Inch.
