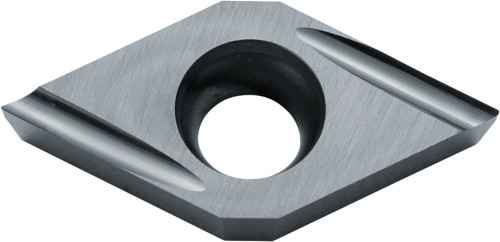

Kyocera DCGT 32501FRU KW10 Grade Uncoated Carbide, Indexable Turning Insert

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TWE00304
$29.80
Kyocera DCGT 32501FRU KW10 Grade Uncoated Carbide, 7 Degree, Diamond, Positive Rake Angle, Right-Hand Turning Insert for Light Interruption and Finishing in (N) Non-Ferrous Metals, (S) Titanium Alloy and (K) Gray Cast Iron

Specifications

Series
ISOI
Unit of Measure
Fractional
Cutting Direction
Right-Hand
Material
Carbide
Coating/Finish
Uncoated
Primary Workpiece Material
(N) Non-Ferrous Materials|(S) Titanium Alloy
Included Angle
55 degrees
Thickness
5/32 Inch
Style
DCGT
Application
Back Boring, Copying, External Turning, Sub-Spindle
Shape
55 Degree Diamond
Insert Holding Method
Screw or Clamp
Size
32501
Old Material Number
8817669
ANSI Part Number
DCGT32501FRUKW10
ISO Part Number
DCGT11T3003FR-U
Rake
Positive
Material Group / Grade
KW10
Corner Radius (Metric)
0.03
Number of Cutting Edges
2
Thickness (Metric)
3.97
Chipbreaker
U
Cutting Range
Finishing
Usage Classification
Light Interruption
Insert Included Angle
55 degrees
Inscribed Circle (Metric)
9.53
Inscribed Circle
3/8 Inch
Pack quantity
10
Kyocera DCGT 32501FRU KW10 Grade Uncoated Carbide, Indexable Turning Insert
$29.80
Add to Your List
Request a Quote

Buying in volume or need custom terms? Request a Quote.
