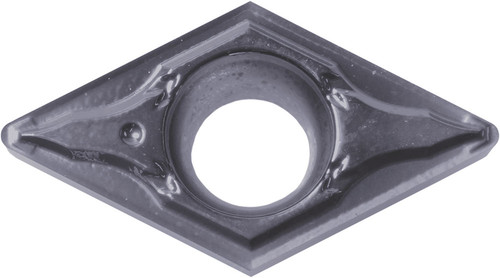

Kyocera Turning Insert DCGT32502MFPGF PR1725: TLM00194

Kyocera Turning Insert DCGT32502MFPGF PR1725, manufacturer part number TLM00194.

Specifications: IC Size: 3/8 in (9.525 mm); Insert Thickness: 5/32 in (3.97 mm); Corner Radius: 0.0040 in (0.10 mm); Insert Holding Method: Screw or Clamp; Old Material Number: 8863446; Rake: Positive; Number of Cutting Edges: 2; Cutting Range: Finishing; Usage Classification: Continuous to Light Interruption; Insert Size: 32502; Hand Direction: Neutral; Insert Style: DCGT; Insert Shape: 55 Degree Diamond; ANSI Designation: DCGT32502MFPGFPR1725; Chip Breaker Type: GF; ISO Designation: DCGT11T301MFP-GF; Included Angle: 55 degrees; Machining Operations: Back Boring, Copying, External Turning, Sub-Spindle; Insert Grade: PR1725; Workpiece Material: Steel, Stainless Steel; Coating Process: PVD.

Material: Carbide. Coating/Finish: MEGACOAT NANO PLUS. Series: ISOI. Unit of measure: Inch.
