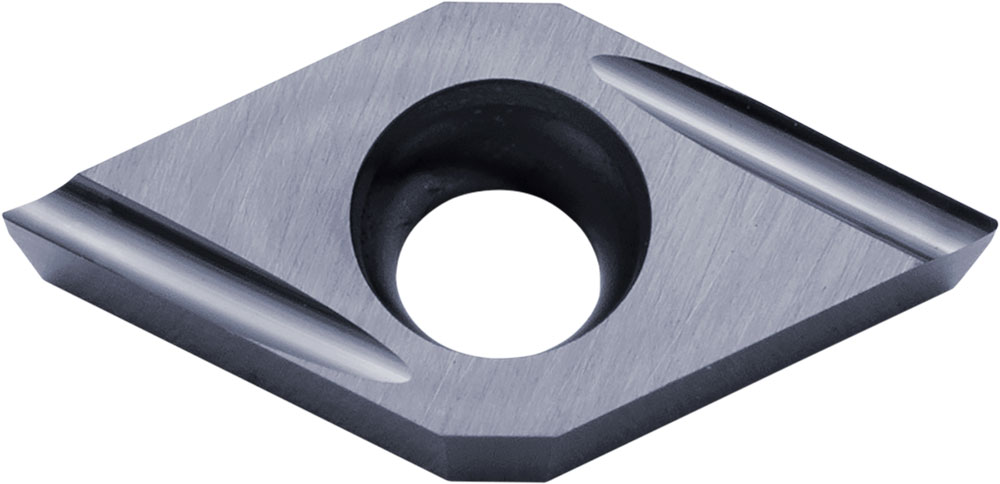

Kyocera Turning Insert DCGT32505FRU KW10: TWE00330

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TWE00330
$29.80

Kyocera ISOI turning insert for non-ferrous metals and high-temp alloys, 3/8 in (9.525 mm) IC, 55 degree diamond shape, positive rake, 2 cutting edges, finishing cutting range, screw or clamp insert holding, right hand. Carbide, uncoated. Manufacturer part number TWE00330.

Specifications

Series
ISOI
Unit of Measure
Inch
Hand Direction
Right
Material
Carbide
Coating/Finish
Uncoated
IC Size (Metric)
9.525
Included Angle
55
Corner Radius (Decimal)
0.0080
Insert Style
DCGT
Insert Thickness (Metric)
3.97
Insert Shape
55 Degree Diamond
Insert Holding Method
Screw or Clamp
Insert Size
32505
Secondary Workpiece Material
Cast Iron
Machining Operations
Back Boring, Copying, External Turning, Sub-Spindle
Insert Grade
KW10
Rake
Positive
Insert Thickness (Fractional)
5/32
Corner Radius (Metric)
0.20
Number of Cutting Edges
2
Workpiece Material
Non-Ferrous, High-Temp Alloy
ISO Designation
DCGT11T302FR-U
Cutting Range
Finishing
Usage Classification
Continuous to Light Interruption
IC Size (Fractional)
3/8
ANSI Designation
DCGT32505FRUKW10
Chip Breaker Type
U
Pack quantity
10
