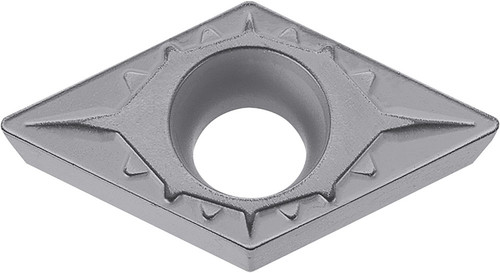

Kyocera Turning Insert DCMT3251HF TN60: TSJ60737

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TSJ60737
$21.74

Kyocera ISOI turning insert for steel, 3/8 in (9.525 mm) IC, 55 degree diamond shape, positive rake, 2 cutting edges, medium cutting range, screw or clamp insert holding, neutral hand. Cermet, uncoated. Manufacturer part number TSJ60737.

Specifications

Series
ISOI
Unit of Measure
Inch
Hand Direction
Neutral
Material
Cermet
Coating/Finish
Uncoated
Insert Thickness (Metric)
3.97
Corner Radius (Fractional)
1/64
Included Angle
55
ANSI Designation
DCMT3251HFTN60
Insert Style
DCMT
Machining Operations
Back Boring, Copying, External Turning
Insert Shape
55 Degree Diamond
Insert Holding Method
Screw or Clamp
Insert Size
3251
Insert Grade
TN60
Workpiece Material
Steel
Rake
Positive
Insert Thickness (Fractional)
5/32
Corner Radius (Metric)
0.40
Number of Cutting Edges
2
IC Size (Fractional)
3/8
Cutting Range
Medium
Usage Classification
Continuous
IC Size (Metric)
9.525
Chip Breaker Type
HF
ISO Designation
DCMT11T304HF
Pack quantity
10
Kyocera Turning Insert DCMT3251HF TN60: TSJ60737
$21.74
Add to Your List
Request a Quote

Buying in volume or need custom terms? Request a Quote.
