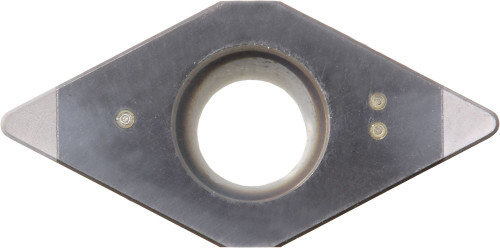

Kyocera Turning Insert DCMW21505S00435MET KBN25M: TBZ02120

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TBZ02120
$99.73

Kyocera ISOI turning insert for hardened steel, 1/4 in (6.35 mm) IC, 55 degree diamond shape, positive rake, 2 cutting edges, medium cutting range, screw or clamp insert holding, neutral hand. CBN, MEGACOAT (PVD) coating. Manufacturer part number TBZ02120.

Specifications

Series
ISOI
Unit of Measure
Inch
Hand Direction
Neutral
Material
CBN
Coating/Finish
MEGACOAT
IC Size (Metric)
6.35
Included Angle
55
Corner Radius (Decimal)
0.0080
Insert Style
DCMW
Insert Thickness (Fractional)
3/32
Insert Shape
55 Degree Diamond
Insert Holding Method
Screw or Clamp
Insert Size
21505
Insert Thickness (Metric)
2.38
Machining Operations
Back Boring, Copying, External Turning
Rake
Positive
IC Size (Fractional)
1/4
Corner Radius (Metric)
0.20
Number of Cutting Edges
2
Insert Grade
KBN25M
Cutting Range
Medium
Usage Classification
Continuous to Light Interruption
ISO Designation
DCMW070202S01035MET
Workpiece Material
Hardened Steel
ANSI Designation
DCMW21505S00435METKBN25M
PDF 2
https://s3-us-west-2.amazonaws.com/catsy.739/Aerospace_Tooling_Solutions_W.pdf
Coating Process
PVD
