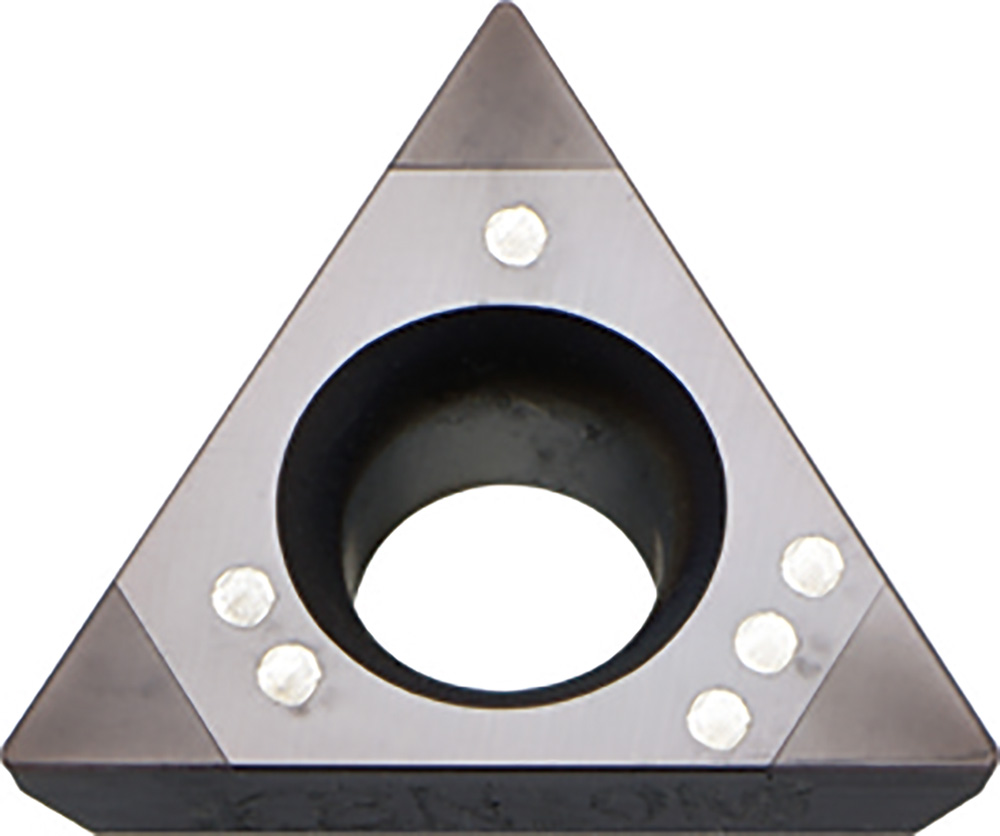

Kyocera Turning Insert TPGB221S00435MET KBN25M: TBZ04951

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TBZ04951
$131.79

Kyocera ISOI turning insert for hardened steel, 1/4 in (6.35 mm) IC, triangle shape, positive rake, 3 cutting edges, medium cutting range, screw or clamp insert holding, neutral hand. CBN, MEGACOAT (PVD) coating. Manufacturer part number TBZ04951.

Specifications

Series
ISOI
Unit of Measure
Inch
Hand Direction
Neutral
Material
CBN
Coating/Finish
MEGACOAT
Insert Thickness (Fractional)
1/8
Corner Radius (Fractional)
1/64
Included Angle
60
ANSI Designation
TPGB221S00435METKBN25M
Insert Style
TPGB
Insert Thickness (Metric)
3.18
Insert Shape
Triangle
Insert Holding Method
Screw or Clamp
Insert Size
221
Machining Operations
Back Boring, Boring, Copying, External Turning, Internal Facing
Insert Grade
KBN25M
Rake
Positive
IC Size (Metric)
6.35
Corner Radius (Metric)
0.40
Number of Cutting Edges
3
Workpiece Material
Hardened Steel
Cutting Range
Medium
Usage Classification
Continuous to Light Interruption
IC Size (Fractional)
1/4
Coating Process
PVD
ISO Designation
TPGB110304S01035MET
