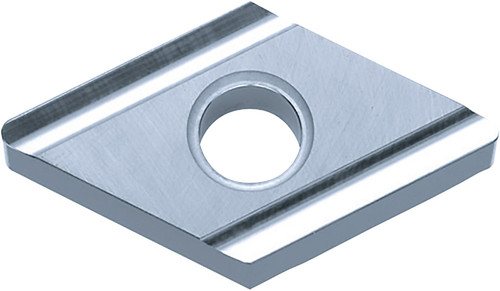

Kyocera Turning Insert DNGG331L KW10: TWE03552

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TWE03552
$36.65

Kyocera Turning Insert DNGG331L KW10, manufacturer part number TWE03552.

Specifications: IC Size: 3/8 in (9.525 mm); Insert Thickness: 3/16 in (4.76 mm); Corner Radius: 1/64 in (0.40 mm); Insert Holding Method: Screw or Clamp; Old Material Number: 8810134; Rake: Negative; Number of Cutting Edges: 4; Cutting Range: Medium; Usage Classification: Continuous to Light Interruption; Insert Size: 331; Hand Direction: Left; Insert Style: DNGG; Insert Shape: 55 Degree Diamond; ANSI Designation: DNGG331LKW10; ISO Designation: DNGG110404L; Included Angle: 55 degrees; Machining Operations: Boring, Copying, External Turning; Insert Grade: KW10; Workpiece Material: Non-Ferrous, High-Temp Alloy, Cast Iron.

Material: Carbide. Coating/Finish: Uncoated. Series: ISOI. Unit of measure: Inch.

Specifications

Series
ISOI
Unit of Measure
Inch
Hand Direction
Left
Material
Carbide
Coating/Finish
Uncoated
Insert Thickness (Fractional)
3/16
Corner Radius (Fractional)
1/64
Included Angle
55
ANSI Designation
DNGG331LKW10
Insert Style
DNGG
Machining Operations
Boring, Copying, External Turning
Insert Shape
55 Degree Diamond
Insert Holding Method
Screw or Clamp
Insert Size
331
Old Material Number
8810134
Insert Grade
KW10
Workpiece Material
Non-Ferrous, High-Temp Alloy, Cast Iron
Rake
Negative
Insert Thickness (Metric)
4.76
Corner Radius (Metric)
0.40
Number of Cutting Edges
4
Cutting Range
Medium
Usage Classification
Continuous to Light Interruption
IC Size (Metric)
9.525
ISO Designation
DNGG110404L
IC Size (Fractional)
3/8
Pack quantity
10
Kyocera Turning Insert DNGG331L KW10: TWE03552
$36.65
