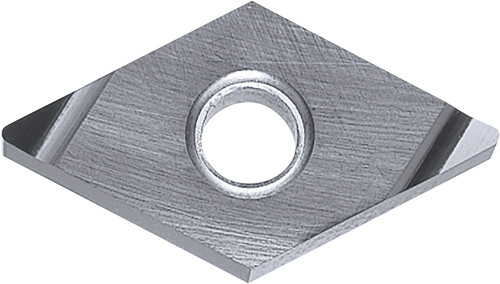

Kyocera Turning Insert DNGG331LS KW10: TWE03566

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TWE03566
$36.65

Kyocera ISOI turning insert for non-ferrous metals and high-temp alloys, 3/8 in (9.525 mm) IC, 55 degree diamond shape, negative rake, 4 cutting edges, finishing cutting range, screw or clamp insert holding, left hand. Carbide, uncoated. Manufacturer part number TWE03566.

Specifications

Series
ISOI
Unit of Measure
Inch
Hand Direction
Left
Material
Carbide
Coating/Finish
Uncoated
Insert Thickness (Fractional)
3/16
Corner Radius (Fractional)
1/64
Included Angle
55
ANSI Designation
DNGG331LSKW10
Insert Style
DNGG
Machining Operations
Boring, Copying, External Turning
Insert Shape
55 Degree Diamond
Insert Holding Method
Screw or Clamp
Insert Size
331
Secondary Workpiece Material
Cast Iron
Insert Grade
KW10
Workpiece Material
Non-Ferrous, High-Temp Alloy
Rake
Negative
Insert Thickness (Metric)
4.76
Corner Radius (Metric)
0.40
Number of Cutting Edges
4
IC Size (Fractional)
3/8
Cutting Range
Finishing
Usage Classification
Continuous to Light Interruption
IC Size (Metric)
9.525
Chip Breaker Type
S
ISO Designation
DNGG110404L-S
Pack quantity
10
PDF 1
https://s3-us-west-2.amazonaws.com/catsy.739/Molded_Sharp_Edge_Chipbreaker.pdf
PDF 2
https://s3-us-west-2.amazonaws.com/catsy.739/Small_Part_Tooling_Solutions.pdf
