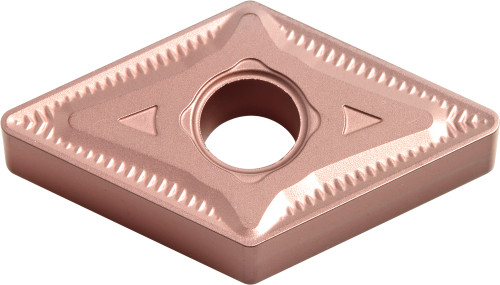

Kyocera Turning Insert DNMG433KG CA310: TMC02263

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TMC02263
$29.35

Kyocera ISOI turning insert for cast iron, 1/2 in (12.70 mm) IC, 55 degree diamond shape, negative rake, 4 cutting edges, medium cutting range, screw or clamp insert holding, neutral hand. Carbide, TiCN/Al2O3/Ti (CVD) coating. Manufacturer part number TMC02263.

Specifications

Series
ISOI
Unit of Measure
Inch
Hand Direction
Neutral
Material
Carbide
Coating/Finish
TiCN/Al2O3/Ti
Insert Thickness (Fractional)
3/16
Corner Radius (Fractional)
3/64
Included Angle
55
ANSI Designation
DNMG433KGCA310
Insert Style
DNMG
Insert Thickness (Metric)
4.76
Insert Shape
55 Degree Diamond
Insert Holding Method
Screw or Clamp
Insert Size
433
Machining Operations
Boring, Copying, External Turning
Insert Grade
CA310
Rake
Negative
IC Size (Metric)
12.70
Corner Radius (Metric)
1.20
Number of Cutting Edges
4
Workpiece Material
Cast Iron
ISO Designation
DNMG150412KG
Cutting Range
Medium
Usage Classification
Continuous
IC Size (Fractional)
1/2
Coating Process
CVD
Chip Breaker Type
KG
Pack quantity
10
PDF 2
https://s3-us-west-2.amazonaws.com/catsy.739/Automotive_Tooling_Solutions.pdf
PDF 3
https://s3-us-west-2.amazonaws.com/catsy.739/CA3-Series_W.pdf
