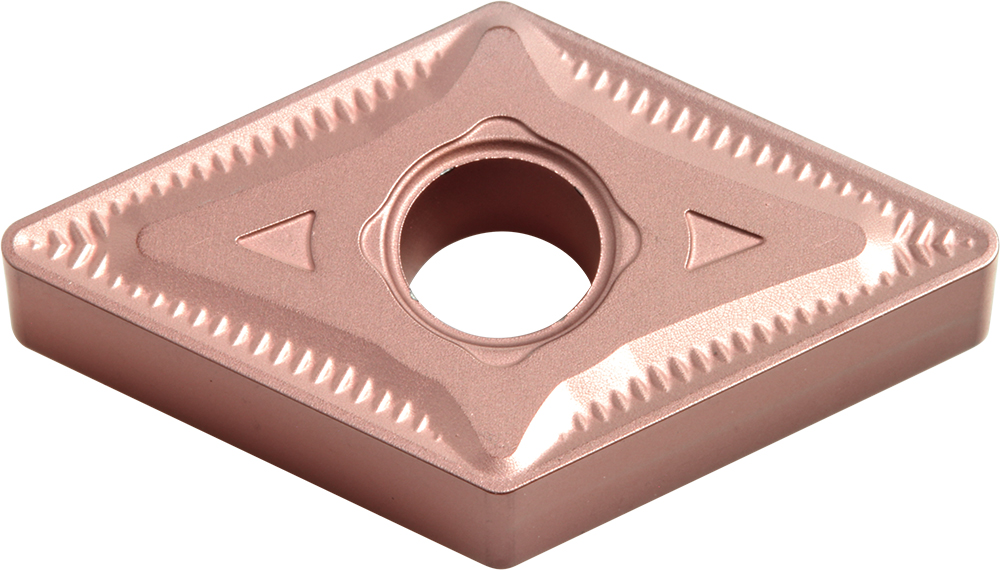

Kyocera Turning Insert DNMG443GC CA315: TMD02421

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TMD02421
$32.91

Kyocera Turning Insert DNMG443GC CA315, manufacturer part number TMD02421.

Specifications: IC Size: 1/2 in (12.70 mm); Insert Thickness: 1/4 in (6.35 mm); Corner Radius: 3/64 in (1.20 mm); Insert Holding Method: Screw or Clamp; Old Material Number: 8848741; Rake: Negative; Number of Cutting Edges: 4; Cutting Range: Roughing; Usage Classification: Continuous to Light Interruption; Insert Size: 443; Hand Direction: Neutral; Insert Style: DNMG; Insert Shape: 55 Degree Diamond; ANSI Designation: DNMG443GCCA315; Chip Breaker Type: GC; ISO Designation: DNMG150612GC; Included Angle: 55 degrees; Machining Operations: Boring, Copying, External Turning; Insert Grade: CA315; Workpiece Material: Cast Iron; Coating Process: CVD.

Material: Carbide. Coating/Finish: TiCN/Al2O3/Ti. Series: ISOI. Unit of measure: Inch.

Specifications

Series
ISOI
Unit of Measure
Inch
Hand Direction
Neutral
Material
Carbide
Coating/Finish
TiCN/Al2O3/Ti
IC Size (Metric)
12.70
Corner Radius (Fractional)
3/64
Included Angle
55
ANSI Designation
DNMG443GCCA315
Insert Style
DNMG
Insert Thickness (Metric)
6.35
Insert Shape
55 Degree Diamond
Insert Holding Method
Screw or Clamp
Insert Size
443
Old Material Number
8848741
Machining Operations
Boring, Copying, External Turning
Insert Grade
CA315
Rake
Negative
Insert Thickness (Fractional)
1/4
Corner Radius (Metric)
1.20
Number of Cutting Edges
4
Workpiece Material
Cast Iron
ISO Designation
DNMG150612GC
Cutting Range
Roughing
Usage Classification
Continuous to Light Interruption
IC Size (Fractional)
1/2
Coating Process
CVD
Chip Breaker Type
GC
Pack quantity
10
