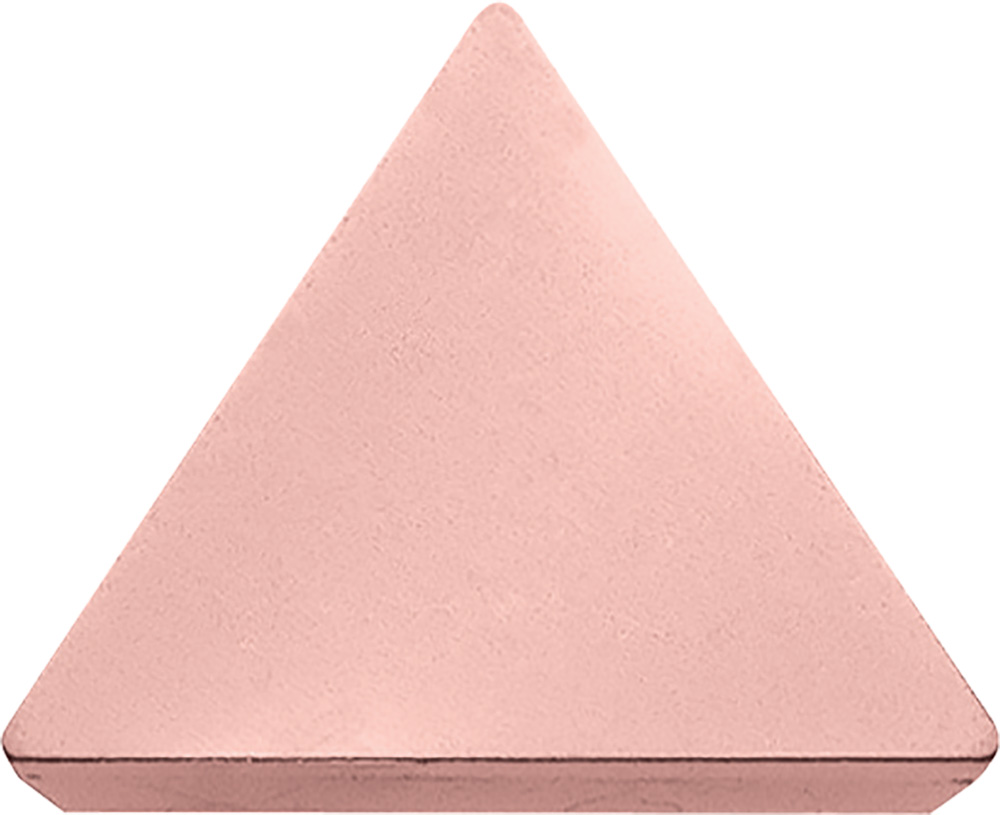

Kyocera Turning Insert TPM322 CA315: TMD06621

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TMD06621
$18.26

Kyocera Turning Insert TPM322 CA315, manufacturer part number TMD06621.

Specifications: IC Size: 3/8 in (9.525 mm); Insert Thickness: 1/8 in (3.18 mm); Corner Radius: 1/32 in (0.80 mm); Insert Holding Method: Clamp; Old Material Number: 8848778; Rake: Positive; Number of Cutting Edges: 3; Cutting Range: Medium; Usage Classification: Continuous to Light Interruption; Insert Size: 322; Hand Direction: Neutral; Insert Style: TPM; ANSI Designation: TPM322CA315; ISO Designation: TPMN160308; Included Angle: 60 degrees; Machining Operations: Boring, Chamfering, External Turning, Facing; Insert Grade: CA315; Workpiece Material: Cast Iron; Insert Shape: Triangle; Coating Process: CVD.

Material: Carbide. Coating/Finish: TiCN/Al2O3/Ti. Series: ISOI. Unit of measure: Inch.

Specifications

Series
ISOI
Unit of Measure
Inch
Hand Direction
Neutral
Material
Carbide
Coating/Finish
TiCN/Al2O3/Ti
Insert Thickness (Fractional)
1/8
Corner Radius (Fractional)
1/32
Included Angle
60
ANSI Designation
TPM322CA315
Insert Style
TPM
Machining Operations
Boring, Chamfering, External Turning, Facing
Insert Shape
Triangle
Insert Holding Method
Clamp
Insert Size
322
Old Material Number
8848778
Insert Grade
CA315
Workpiece Material
Cast Iron
Rake
Positive
Insert Thickness (Metric)
3.18
Corner Radius (Metric)
0.80
Number of Cutting Edges
3
Coating Process
CVD
Cutting Range
Medium
Usage Classification
Continuous to Light Interruption
IC Size (Metric)
9.525
ISO Designation
TPMN160308
IC Size (Fractional)
3/8
Pack quantity
10
