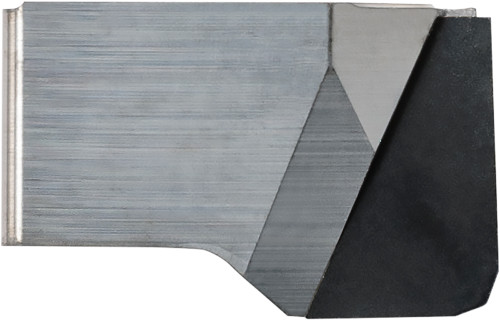

Kyocera ENET 0905PAERG KPD001 Grade PCD, Indexable Milling Insert

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TBR03054
$174.37
Kyocera ENET 0905PAERG KPD001 Grade PCD, Irregular, Negative Rake Angle, Right-Hand Milling insert for Finishing in (N) Non-Ferrous Materials and n/a

Specifications

Series
MFAH
Unit of Measure
Metric
Cutting Direction
Right
Material
PCD
Coating/Finish
Uncoated
Primary Workpiece Material
(N) Non-Ferrous Materials
Corner Radius
5.60 mm
Grade
KPD001
Thickness
7.90 mm
Style
ENET
Application
Facing, Finish Milling
Thickness (Decimal)
0.31
Shape
Irregular
Insert Holding Method
Clamp
Old Material Number
8858676
ANSI Part Number
ENET0905PAERGKPD001
ISO Part Number
ENET0905PAER-G
Rake
Negative
Number of Cutting Edges
2
Insert Size
0905
Chipbreaker
ER-G
Cutting Range
Finishing
Corner Radius (Decimal)
0.22
PDF 1
https://s3-us-west-2.amazonaws.com/catsy.739/MFAH_Milling_Cutter_for_Finishing_Aluminum.pdf
PDF 2
https://s3-us-west-2.amazonaws.com/catsy.739/Automotive_Tooling_Solutions.pdf
Kyocera ENET 0905PAERG KPD001 Grade PCD, Indexable Milling Insert
$174.37
Add to Your List
Request a Quote

Buying in volume or need custom terms? Request a Quote.
