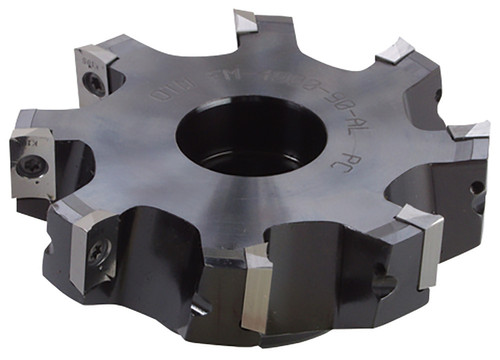

Kyocera FM 400090AL Inch Bore Diameter, 90 Degree Face Mill

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-OTM86429
$937.93
Kyocera FM 400090AL Inch Bore Diameter, Standard Pitch, 8 Flute, 90 Degree Face Mill with a 4.0000" Cutting Diameter for Aluminum Shouldering, Facing, Slotting, Ramping Applications

Specifications

Series
FM
Unit of Measure
Imperial
Material
Steel
Cutting Diameter (Decimal)
4
Cutting Diameter (Metric)
101.60
Cutting Diameter
4 Inch
Number of Flutes
8
Application
Facing, Ramping, Shouldering, Slotting
Insert Holding Method
Screw
Coolant Through
No
Old Material Number
8601035
ANSI Part Number
FM400090AL
ISO Part Number
FM400090AL
Material Group / Grade
GR99
Tool Style
FM
Cutting Diameter Minimum (Decimal)
4
Number of Inserts
8
Hand of Holder
Right
Max. Depth Of Cut
0.64 Inch
Maximum Depth of Cut (Metric)
16.26
Cutting Diameter Minimum (Metric)
101.60
Cutting Maximum (Metric)
101.60
Connection Bore Diameter (Decimal)
1
Connection Bore Diameter (Metric)
25.40
Contact Surface Diameter Machine Side (Decimal)
2
Contact Surface Diameter Machine Side (Metric)
50.80
Tool Entering Angle
90 degrees
Cutter Pitch
Standard Pitch
Kyocera FM 400090AL Inch Bore Diameter, 90 Degree Face Mill
$937.93
Add to Your List
Request a Quote

Buying in volume or need custom terms? Request a Quote.
