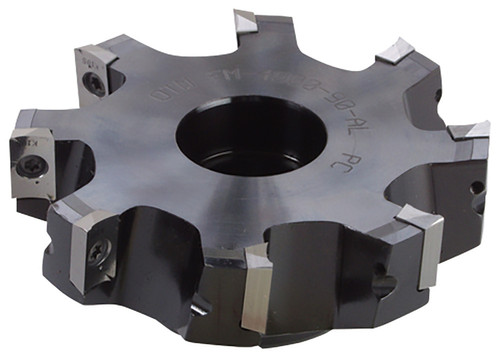

Kyocera FM 400090AL125 Inch Bore Diameter, 90 Degree Face Mill

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-OTM86430
$937.93
Kyocera FM 400090AL125 Inch Bore Diameter, Standard Pitch, 8 Flute, 90 Degree Face Mill with a 4.0000" Cutting Diameter for Aluminum Shouldering, Facing, Slotting, Ramping Applications

Specifications

Series
FM
Unit of Measure
Imperial
Material
Steel
Cutting Diameter (Decimal)
4
Cutting Diameter (Metric)
101.60
Cutting Diameter
4 Inch
Number of Flutes
8
Application
Facing, Ramping, Shouldering, Slotting
Insert Holding Method
Screw
Coolant Through
No
Old Material Number
8601036
ANSI Part Number
FM400090AL125
ISO Part Number
FM400090AL125
Material Group / Grade
GR99
Tool Style
FM
Cutting Diameter Minimum (Decimal)
4
Number of Inserts
8
Hand of Holder
Right
Max. Depth Of Cut
0.64 Inch
Maximum Depth of Cut (Metric)
16.26
Cutting Diameter Minimum (Metric)
101.60
Cutting Maximum (Metric)
101.60
Connection Bore Diameter (Decimal)
1.25
Connection Bore Diameter (Metric)
31.75
Contact Surface Diameter Machine Side (Decimal)
2.40
Contact Surface Diameter Machine Side (Metric)
61
Tool Entering Angle
90 degrees
Cutter Pitch
Standard Pitch
Kyocera FM 400090AL125 Inch Bore Diameter, 90 Degree Face Mill
$937.93
