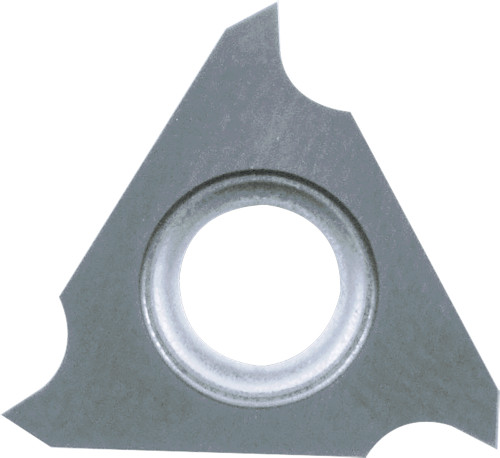

Kyocera Grooving Insert GBF32R110000F GW15: TWG19922

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TWG19922
$48.66

Kyocera GBF grooving insert for cast iron, non-ferrous metals and high-temp alloys, 3/8 in (9.525 mm) IC, triangle shape, positive rake, 3 cutting edges, medium-roughing cutting range, screw insert holding, right hand. Carbide, uncoated. Manufacturer part number TWG19922.

Specifications

Series
GBF
Unit of Measure
Metric
Material
Carbide
Coating/Finish
Uncoated
Corner Radius (Decimal)
0.0000
Insert Shape
Triangle
Cutting Width (Metric)
1.10
ANSI Designation
GBF32R110000FGW15
Corner Radius (Metric)
0.00
Cutting Width (Decimal)
0.0433
Insert Style
GBF
ISO Designation
GBF32R110-000F
Chip Breaker Type
F
IC Size (Fractional)
3/8
Insert Holding Method
Screw
Insert Size
110
IC Size (Metric)
9.525
Insert Thickness (Fractional)
1/8
Rake
Positive
Number of Cutting Edges
3
Hand Direction
Right
Cutting Range
Medium-Roughing
Full Radius
No
Usage Classification
Continuous to Light Interruption
Cutting Width Minimum (Decimal)
0.0433
Cutting Width Minimum (Metric)
1.10
Cutting Width Maximum (Decimal)
0.0433
Cutting Width Maximum (Metric)
1.10
Maximum Depth of Cut (Decimal)
0.0787
Maximum Depth of Cut (Metric)
2.00
Insert Thickness (Metric)
3.18
Pack quantity
10
PDF 1
https://s3-us-west-2.amazonaws.com/catsy.739/GBF_Grooving_for_Small_Parts.pdf
PDF 2
https://s3-us-west-2.amazonaws.com/catsy.739/Small_Part_Tooling_Solutions.pdf
PDF 3
https://s3-us-west-2.amazonaws.com/catsy.739/JCTM-Series.pdf
Insert Grade
GW15
Machining Operations
External Grooving
Workpiece Material
Cast Iron, Non-Ferrous, High-Temp Alloy
