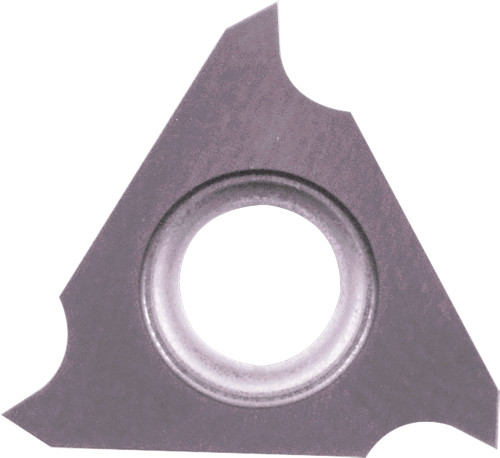

Kyocera Grooving Insert GBF32R170000F PR1215: TKH19938

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TKH19938
$51.90

Kyocera Grooving Insert GBF32R170000F PR1215, manufacturer part number TKH19938.

Specifications: IC Size: 9.525 mm (3/8 in); Insert Thickness: 3.18 mm (1/8 in); Corner Radius: 0.00 mm (0.0000 in); Cutting Width: 1.70 mm (0.0669 in); Insert Holding Method: Screw; Old Material Number: 8867616; Rake: Positive; Number of Cutting Edges: 3; Cutting Range: Medium-Roughing; Full Radius: No; Usage Classification: Continuous to Light Interruption; Cutting Width Minimum: 1.70 mm (0.0669 in); Cutting Width Maximum: 1.70 mm (0.0669 in); Maximum Depth of Cut: 3.00 mm (0.1181 in); Insert Size: 170; Insert Style: GBF; Hand Direction: Right; ANSI Designation: GBF32R170000FPR1215; Chip Breaker Type: F; ISO Designation: GBF32R170-000F; Machining Operations: External Grooving; Insert Grade: PR1215; Workpiece Material: Steel, Stainless Steel; Insert Shape: Triangle; Coating Process: PVD.

Material: Carbide. Coating/Finish: MEGACOAT. Series: GBF. Unit of measure: Metric.

Specifications

Series
GBF
Unit of Measure
Metric
Material
Carbide
Coating/Finish
MEGACOAT
Corner Radius (Decimal)
0.0000
Insert Shape
Triangle
Cutting Width (Metric)
1.70
ANSI Designation
GBF32R170000FPR1215
Corner Radius (Metric)
0.00
Cutting Width (Decimal)
0.0669
Insert Style
GBF
ISO Designation
GBF32R170-000F
Chip Breaker Type
F
IC Size (Fractional)
3/8
Insert Holding Method
Screw
Insert Size
170
Old Material Number
8867616
IC Size (Metric)
9.525
Insert Thickness (Fractional)
1/8
Rake
Positive
Number of Cutting Edges
3
Hand Direction
Right
Cutting Range
Medium-Roughing
Full Radius
No
Usage Classification
Continuous to Light Interruption
Cutting Width Minimum (Decimal)
0.0669
Cutting Width Minimum (Metric)
1.70
Cutting Width Maximum (Decimal)
0.0669
Cutting Width Maximum (Metric)
1.70
Maximum Depth of Cut (Decimal)
0.1181
Maximum Depth of Cut (Metric)
3.00
Insert Thickness (Metric)
3.18
Pack quantity
10
PDF 1
https://s3-us-west-2.amazonaws.com/catsy.739/GBF_Grooving_for_Small_Parts.pdf
PDF 2
https://s3-us-west-2.amazonaws.com/catsy.739/Small_Part_Tooling_Solutions.pdf
PDF 3
https://s3-us-west-2.amazonaws.com/catsy.739/JCTM-Series.pdf
Coating Process
PVD
Insert Grade
PR1215
Machining Operations
External Grooving
Workpiece Material
Steel, Stainless Steel
Kyocera Grooving Insert GBF32R170000F PR1215: TKH19938
$51.90
