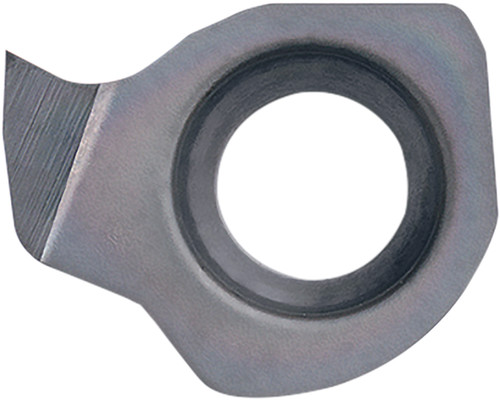

Kyocera GC 10L145010 PR1725 Grade PVD Carbide, Indexable Grooving Insert

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TLM00537
$44.12
Kyocera GC 10L145010 PR1725 Grade PVD Carbide, 1.45mm Groove Width, Left-Hand Grooving Insert for Light Interruption and Finishing-Medium in (P) Steel and (M) Stainless Steel

Specifications

Series
SIGC
Unit of Measure
Metric
Material
Carbide
Coating/Finish
PVD
Primary Workpiece Material
(P) Steel
Corner Radius (Metric)
0.10
Grade
PR1725
Cutting Width
1.45 mm
Thickness (Metric)
4.40
Cutting Width (Decimal)
0.06
Style
GC
Application
Internal Grooving|Small Parts Machining
Thickness (Decimal)
0.17
Insert Holding Method
Screw or Clamp
Insert Length (Decimal)
0.38
Insert Length (Metric)
9.60
Size
10
Old Material Number
8864915
ANSI Part Number
GC10L145010PR1725
ISO Part Number
GC10L145-010
Rake
Positive
Number of Cutting Edges
1
Hand of Holder
Left
Cutting Range
Finishing-Medium
Full Radius
No
Usage Classification
Light Interruption
Corner Radius (Decimal)
0.004
Cutting Width Minimum (Decimal)
0.06
Cutting Width Minimum (Metric)
1.45
Cutting Width Maximum (Decimal)
0.06
Cutting Width Maximum (Metric)
1.45
Max Depth of Cut (Decimal)
0.09
Max Depth of Cut (Metric)
2.20
Pack quantity
5
PDF 1
https://s3-us-west-2.amazonaws.com/catsy.739/SIGC_Small_Internal_Grooving.pdf
PDF 2
https://s3-us-west-2.amazonaws.com/catsy.739/Small_Part_Tooling_Solutions.pdf
PDF 3
https://s3-us-west-2.amazonaws.com/catsy.739/PR1725_PR1705.pdf
Kyocera GC 10L145010 PR1725 Grade PVD Carbide, Indexable Grooving Insert
$44.12
