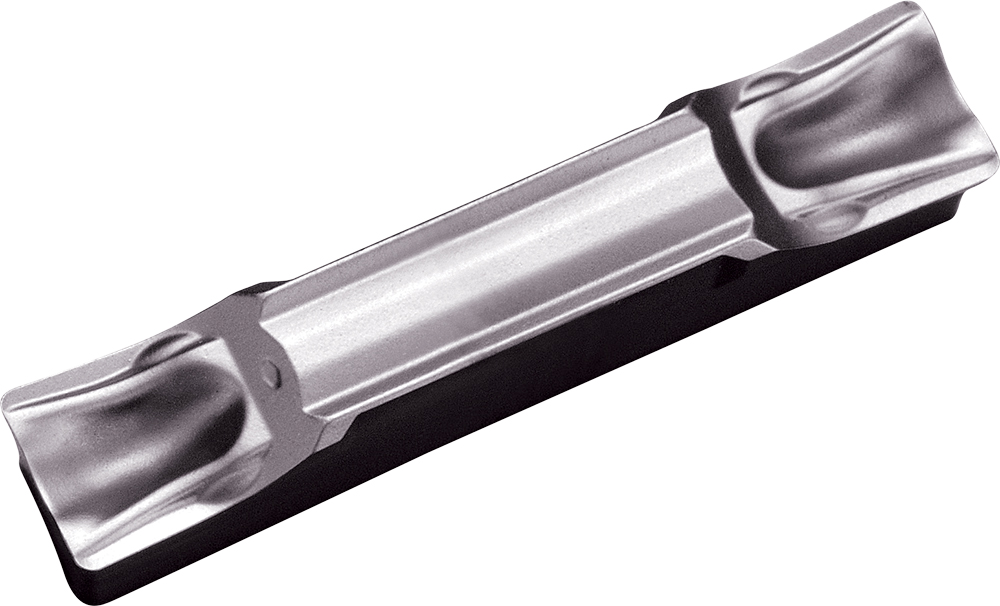

Kyocera GDFM 6020N300RCM PR1225 Grade PVD Carbide, Indexable Grooving Insert

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TKE10815
$60.67
Kyocera GDFM 6020N300RCM PR1225 Grade PVD Carbide, 6.00mm Groove Width, Neutral Grooving Insert for Continuous and Medium-Roughing in (P) Steel and (M) Stainless Steel

Specifications

Series
KGD
Unit of Measure
Metric
Material
Carbide
Coating/Finish
PVD
Primary Workpiece Material
(P) Steel
Corner Radius (Metric)
3
Grade
PR1225
Cutting Width
6 mm
Thickness (Metric)
4.50
Cutting Width (Decimal)
0.24
Style
GDFM
Application
Face Grooving
Chip Breaker Type
CM
Thickness (Decimal)
0.18
Insert Holding Method
Clamp
Insert Length (Decimal)
0.87
Insert Length (Metric)
22
Size
6020
Old Material Number
8845991
ANSI Part Number
GDFM6020N300RCMPR1225
ISO Part Number
GDFM6020N-300R-CM
Rake
Positive
Number of Cutting Edges
2
Hand of Holder
Neutral
Cutting Range
Medium-Roughing
Full Radius
Yes
Usage Classification
Continuous
Corner Radius (Decimal)
0.12
Cutting Width Minimum (Decimal)
0.24
Cutting Width Minimum (Metric)
6
Cutting Width Maximum (Decimal)
0.24
Cutting Width Maximum (Metric)
6
Max Depth of Cut (Decimal)
1.26
Max Depth of Cut (Metric)
32
Pack quantity
10
PDF 1
https://s3-us-west-2.amazonaws.com/catsy.739/KGD_KGDF_Grooving_and_Cut-Off.pdf
PDF 2
https://s3-us-west-2.amazonaws.com/catsy.739/Automotive_Tooling_Solutions.pdf
PDF 3
https://s3-us-west-2.amazonaws.com/catsy.739/JCT-Series_Coolant-Through_Holders.pdf
