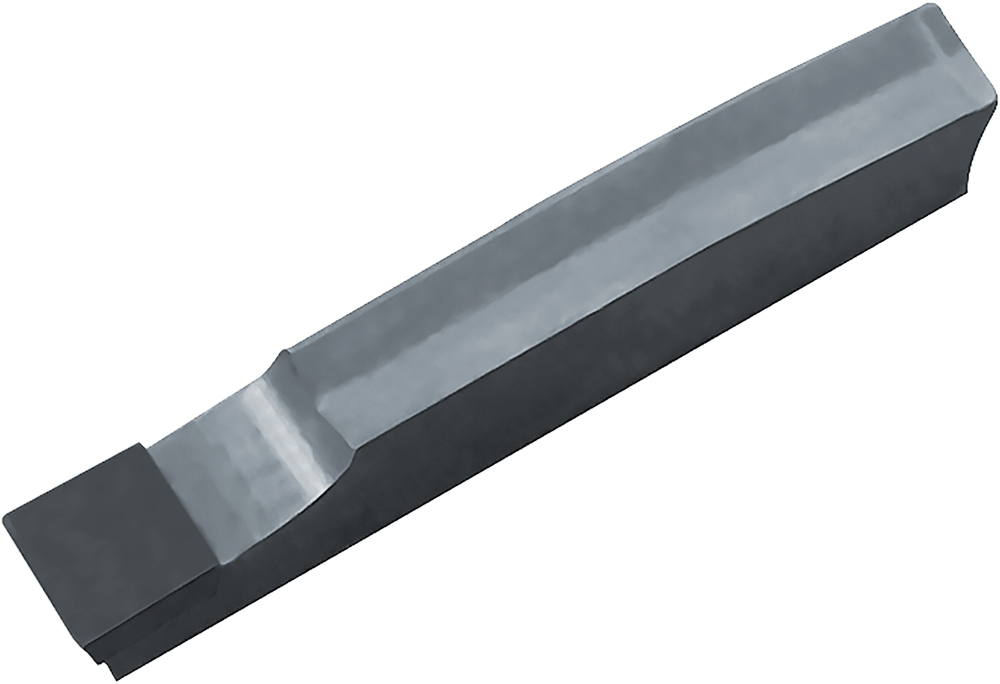

Kyocera GDGS 2020N020NB KBN05M Grade CBN, Indexable Grooving Insert

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TBN10740
$272.48
Kyocera GDGS 2020N020NB KBN05M Grade CBN, 2.00mm Groove Width, Neutral Grooving Insert for Continuous and Finishing in (H) Hardened Materials

Specifications

Series
KGD
Unit of Measure
Metric
Material
CBN
Coating/Finish
PVD
Primary Workpiece Material
(H) Hardened Materials
Corner Radius (Metric)
0.20
Grade
KBN05M
Cutting Width
2 mm
Thickness (Metric)
4.30
Cutting Width (Decimal)
0.08
Style
GDGS
Application
External Grooving
Chip Breaker Type
NB
Thickness (Decimal)
0.17
Insert Holding Method
Clamp
Insert Length (Decimal)
0.79
Insert Length (Metric)
20
Size
2020
Old Material Number
8857927
ANSI Part Number
GDGS2020N020NBKBN05M
ISO Part Number
GDGS2020N-020NB
Rake
Positive
Number of Cutting Edges
1
Hand of Holder
Neutral
Cutting Range
Finishing
Full Radius
No
Usage Classification
Continuous
Corner Radius (Decimal)
0.01
Cutting Width Minimum (Decimal)
0.08
Cutting Width Minimum (Metric)
2
Cutting Width Maximum (Decimal)
0.08
Cutting Width Maximum (Metric)
2
Max Depth of Cut (Decimal)
0.67
Max Depth of Cut (Metric)
17
PDF 1
https://s3-us-west-2.amazonaws.com/catsy.739/KGD_KGDF_Grooving_and_Cut-Off.pdf
PDF 2
https://s3-us-west-2.amazonaws.com/catsy.739/Automotive_Tooling_Solutions.pdf
PDF 3
https://s3-us-west-2.amazonaws.com/catsy.739/JCT-Series_Coolant-Through_Holders.pdf
