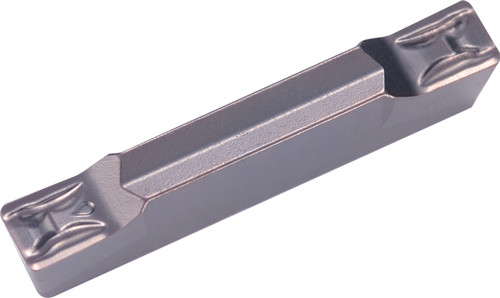

Kyocera Grooving Insert GDM4020N080GM PR1215: TKH10551

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TKH10551
$44.90

Kyocera Grooving Insert GDM4020N080GM PR1215, manufacturer part number TKH10551.

Specifications: Insert Thickness: 4.30 mm (0.1690 in); Corner Radius: 0.80 mm (1/32 in); Cutting Width: 4.00 mm (0.1575 in); Insert Holding Method: Clamp; Insert Length: 20.00 mm (0.7874 in); Old Material Number: 8832962; Rake: Positive; Number of Cutting Edges: 2; Cutting Range: Medium; Full Radius: No; Usage Classification: Continuous; Cutting Width Minimum: 4.00 mm (0.1575 in); Cutting Width Maximum: 4.00 mm (0.1575 in); Maximum Depth of Cut: 25.50 mm (1.0039 in); Insert Shape: Irregular; Insert Size: 4020; Insert Style: GDM; Hand Direction: Neutral; ANSI Designation: GDM4020N080GMPR1215; Chip Breaker Type: GM; ISO Designation: GDM4020N-080GM; Machining Operations: External Grooving, Traversing; Insert Grade: PR1215; Workpiece Material: Steel, Stainless Steel; Coating Process: PVD.

Material: Carbide. Coating/Finish: MEGACOAT. Series: KGD. Unit of measure: Metric.

Specifications

Series
KGD
Unit of Measure
Metric
Material
Carbide
Coating/Finish
MEGACOAT
ISO Designation
GDM4020N-080GM
Corner Radius (Metric)
0.80
Corner Radius (Fractional)
1/32
Insert Thickness (Metric)
4.30
Cutting Width (Metric)
4.00
Machining Operations
External Grooving, Traversing
Cutting Width (Decimal)
0.1575
Insert Style
GDM
ANSI Designation
GDM4020N080GMPR1215
Chip Breaker Type
GM
Insert Shape
Irregular
Insert Holding Method
Clamp
Insert Length (Decimal)
0.7874
Insert Length (Metric)
20.00
Insert Size
4020
Old Material Number
8832962
Insert Grade
PR1215
Workpiece Material
Steel, Stainless Steel
Rake
Positive
Number of Cutting Edges
2
Hand Direction
Neutral
Cutting Range
Medium
Full Radius
No
Usage Classification
Continuous
Cutting Width Minimum (Decimal)
0.1575
Cutting Width Minimum (Metric)
4.00
Cutting Width Maximum (Decimal)
0.1575
Cutting Width Maximum (Metric)
4.00
Maximum Depth of Cut (Decimal)
1.0039
Maximum Depth of Cut (Metric)
25.50
Pack quantity
10
PDF 1
https://s3-us-west-2.amazonaws.com/catsy.739/KGD_KGDF_Grooving_and_Cut-Off.pdf
PDF 2
https://s3-us-west-2.amazonaws.com/catsy.739/Automotive_Tooling_Solutions.pdf
PDF 3
https://s3-us-west-2.amazonaws.com/catsy.739/JCT-Series_Coolant-Through_Holders.pdf
Coating Process
PVD
Insert Thickness (Decimal)
0.1690
