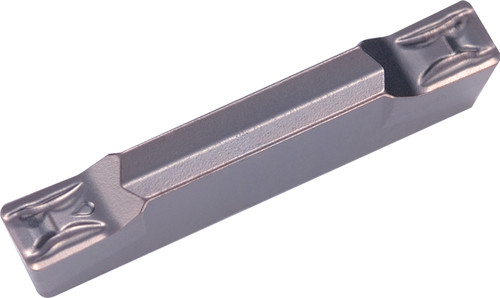

Kyocera GDM 4020N080GM PR1225 Grade PVD Carbide, Indexable Grooving Insert

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TKE10551
$44.90
Kyocera GDM 4020N080GM PR1225 Grade PVD Carbide, 4.00mm Groove Width, Neutral Grooving Insert for Continuous and Medium-Roughing in (P) Steel and (M) Stainless Steel

Specifications

Series
KGD
Unit of Measure
Metric
Material
Carbide
Coating/Finish
PVD
Primary Workpiece Material
(P) Steel
Corner Radius (Metric)
0.80
Corner Radius (Fractional)
1/32
Grade
PR1225
Cutting Width
4 mm
Thickness (Metric)
4.30
Cutting Width (Decimal)
0.16
Style
GDM
Application
External Grooving|Traversing
Chip Breaker Type
GM
Thickness (Decimal)
0.17
Insert Holding Method
Clamp
Insert Length (Decimal)
0.79
Insert Length (Metric)
20
Size
4020
Old Material Number
8834581
ANSI Part Number
GDM4020N080GMPR1225
ISO Part Number
GDM4020N-080GM
Rake
Positive
Number of Cutting Edges
2
Hand of Holder
Neutral
Cutting Range
Medium-Roughing
Full Radius
No
Usage Classification
Continuous
Cutting Width Minimum (Decimal)
0.16
Cutting Width Minimum (Metric)
4
Cutting Width Maximum (Decimal)
0.16
Cutting Width Maximum (Metric)
4
Max Depth of Cut (Decimal)
1
Max Depth of Cut (Metric)
25.50
Pack quantity
10
PDF 1
https://s3-us-west-2.amazonaws.com/catsy.739/KGD_KGDF_Grooving_and_Cut-Off.pdf
PDF 2
https://s3-us-west-2.amazonaws.com/catsy.739/Automotive_Tooling_Solutions.pdf
PDF 3
https://s3-us-west-2.amazonaws.com/catsy.739/JCT-Series_Coolant-Through_Holders.pdf
