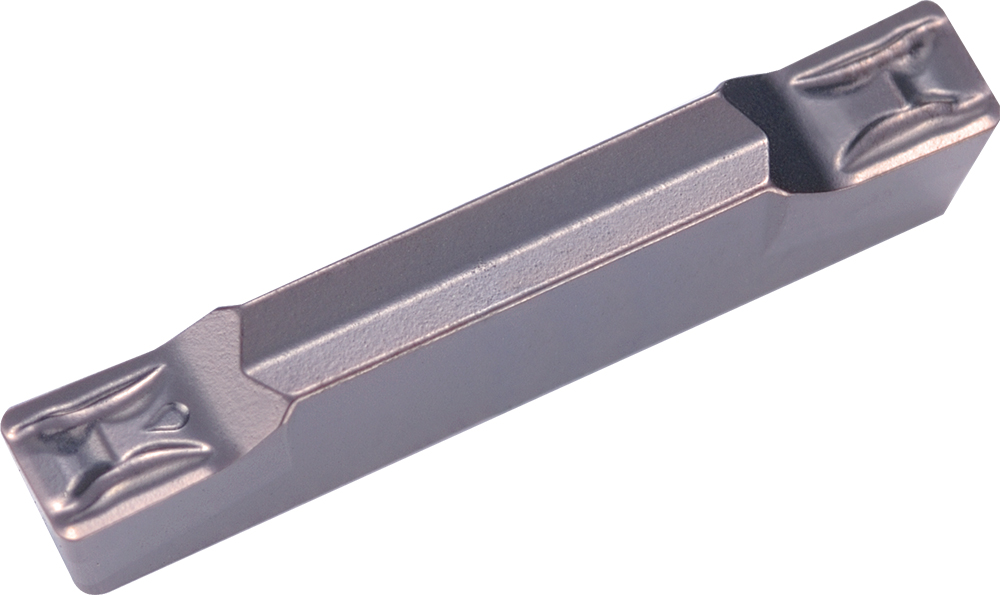

Kyocera GDM 8030N080GM PR1535 Grade PVD Carbide, Indexable Grooving Insert

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TLC10568
$65.16
Kyocera GDM 8030N080GM PR1535 Grade PVD Carbide, 8.00mm Groove Width, Neutral Grooving Insert for Light Interruption and Medium-Roughing in (S) Heat-Resistant Alloy and (M) Stainless Steel

Specifications

Series
KGD
Unit of Measure
Metric
Material
Carbide
Coating/Finish
PVD
Primary Workpiece Material
(S) Heat-Resistant Alloy
Corner Radius (Metric)
0.80
Corner Radius (Fractional)
1/32
Grade
PR1535
Cutting Width
8 mm
Thickness (Metric)
5.50
Cutting Width (Decimal)
0.32
Style
GDM
Application
External Grooving|Traversing
Chip Breaker Type
GM
Thickness (Decimal)
0.22
Insert Holding Method
Clamp
Insert Length (Decimal)
1.18
Insert Length (Metric)
30
Size
8030
Old Material Number
8844590
ANSI Part Number
GDM8030N080GMPR1535
ISO Part Number
GDM8030N-080GM
Rake
Positive
Number of Cutting Edges
2
Hand of Holder
Neutral
Cutting Range
Medium-Roughing
Full Radius
No
Usage Classification
Light Interruption
Cutting Width Minimum (Decimal)
0.32
Cutting Width Minimum (Metric)
8
Cutting Width Maximum (Decimal)
0.32
Cutting Width Maximum (Metric)
8
Max Depth of Cut (Decimal)
0.98
Max Depth of Cut (Metric)
25
Pack quantity
10
PDF 1
https://s3-us-west-2.amazonaws.com/catsy.739/KGD_KGDF_Grooving_and_Cut-Off.pdf
PDF 2
https://s3-us-west-2.amazonaws.com/catsy.739/Automotive_Tooling_Solutions.pdf
PDF 3
https://s3-us-west-2.amazonaws.com/catsy.739/JCT-Series_Coolant-Through_Holders.pdf
Kyocera GDM 8030N080GM PR1535 Grade PVD Carbide, Indexable Grooving Insert
$65.16
Add to Your List
Request a Quote

Buying in volume or need custom terms? Request a Quote.
