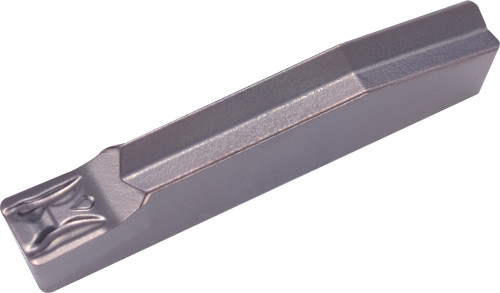

Kyocera Grooving Insert GDMS2220N020GM PR1215: TKH10610

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TKH10610
$29.63

Kyocera Grooving Insert GDMS2220N020GM PR1215, manufacturer part number TKH10610.

Specifications: Insert Thickness: 4.30 mm (0.1690 in); Corner Radius: 0.20 mm (0.0080 in); Cutting Width: 2.20 mm (0.0866 in); Insert Holding Method: Clamp; Insert Length: 20.00 mm (0.7874 in); Old Material Number: 8834603; Rake: Positive; Number of Cutting Edges: 1; Cutting Range: Medium; Full Radius: No; Usage Classification: Continuous; Cutting Width Minimum: 2.20 mm (0.0866 in); Cutting Width Maximum: 2.20 mm (0.0866 in); Maximum Depth of Cut: 17.00 mm (0.6693 in); Insert Shape: Irregular; Insert Size: 2220; Insert Style: GDMS; Hand Direction: Neutral; ANSI Designation: GDMS2220N020GMPR1215; Chip Breaker Type: GM; ISO Designation: GDMS2220N-020GM; Machining Operations: External Grooving, Traversing; Insert Grade: PR1215; Workpiece Material: Steel, Stainless Steel; Coating Process: PVD.

Material: Carbide. Coating/Finish: MEGACOAT. Series: KGD. Unit of measure: Metric.

Specifications

Series
KGD
Unit of Measure
Metric
Material
Carbide
Coating/Finish
MEGACOAT
ISO Designation
GDMS2220N-020GM
Corner Radius (Metric)
0.20
Insert Thickness (Metric)
4.30
Cutting Width (Metric)
2.20
Machining Operations
External Grooving, Traversing
Cutting Width (Decimal)
0.0866
Insert Style
GDMS
ANSI Designation
GDMS2220N020GMPR1215
Chip Breaker Type
GM
Insert Shape
Irregular
Insert Holding Method
Clamp
Insert Length (Decimal)
0.7874
Insert Length (Metric)
20.00
Insert Size
2220
Old Material Number
8834603
Insert Grade
PR1215
Workpiece Material
Steel, Stainless Steel
Rake
Positive
Number of Cutting Edges
1
Hand Direction
Neutral
Cutting Range
Medium
Full Radius
No
Usage Classification
Continuous
Corner Radius (Decimal)
0.0080
Cutting Width Minimum (Decimal)
0.0866
Cutting Width Minimum (Metric)
2.20
Cutting Width Maximum (Decimal)
0.0866
Cutting Width Maximum (Metric)
2.20
Maximum Depth of Cut (Decimal)
0.6693
Maximum Depth of Cut (Metric)
17.00
Pack quantity
10
PDF 1
https://s3-us-west-2.amazonaws.com/catsy.739/KGD_KGDF_Grooving_and_Cut-Off.pdf
PDF 2
https://s3-us-west-2.amazonaws.com/catsy.739/Automotive_Tooling_Solutions.pdf
PDF 3
https://s3-us-west-2.amazonaws.com/catsy.739/JCT-Series_Coolant-Through_Holders.pdf
Coating Process
PVD
Insert Thickness (Decimal)
0.1690
Kyocera Grooving Insert GDMS2220N020GM PR1215: TKH10610
$29.63
